TECHNICAL SPECIFICATIONS

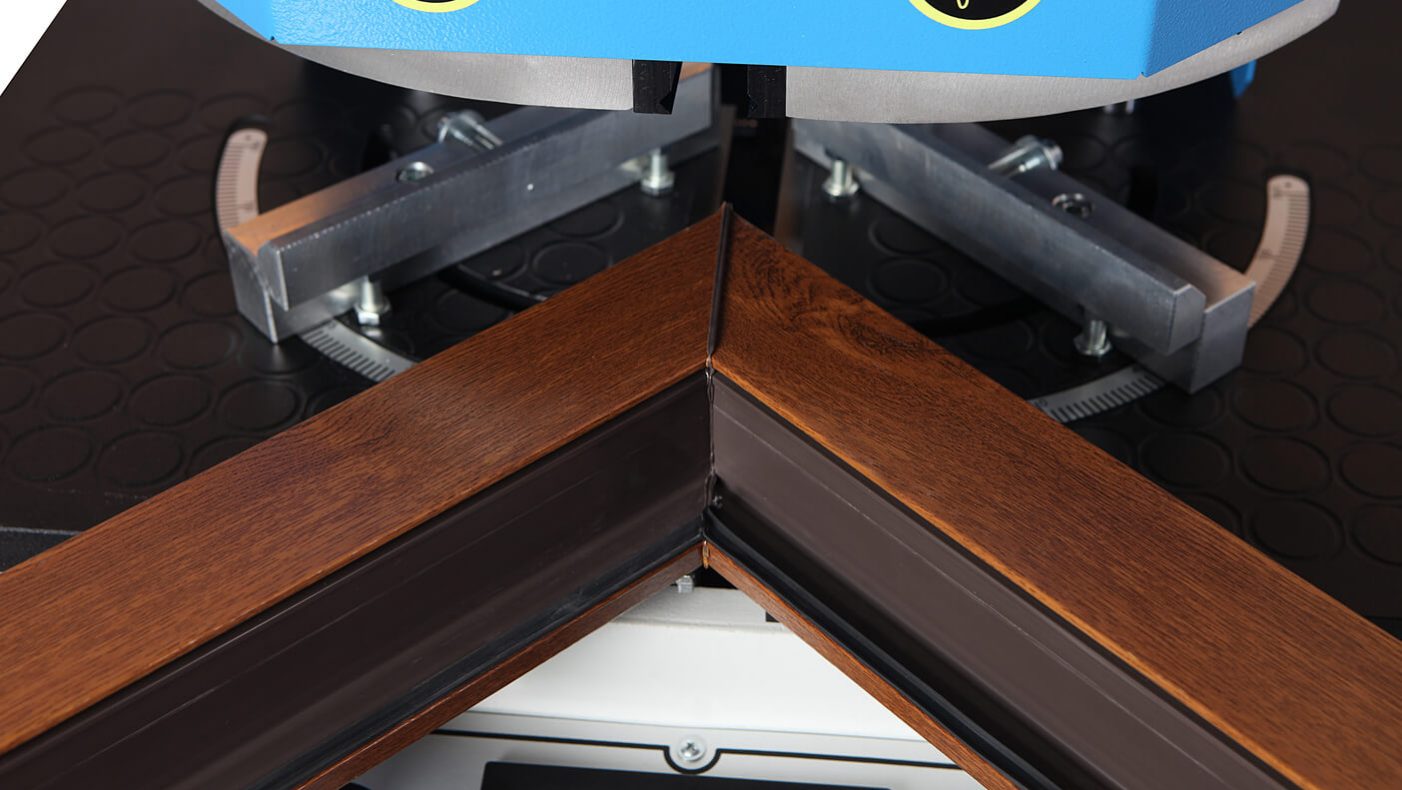

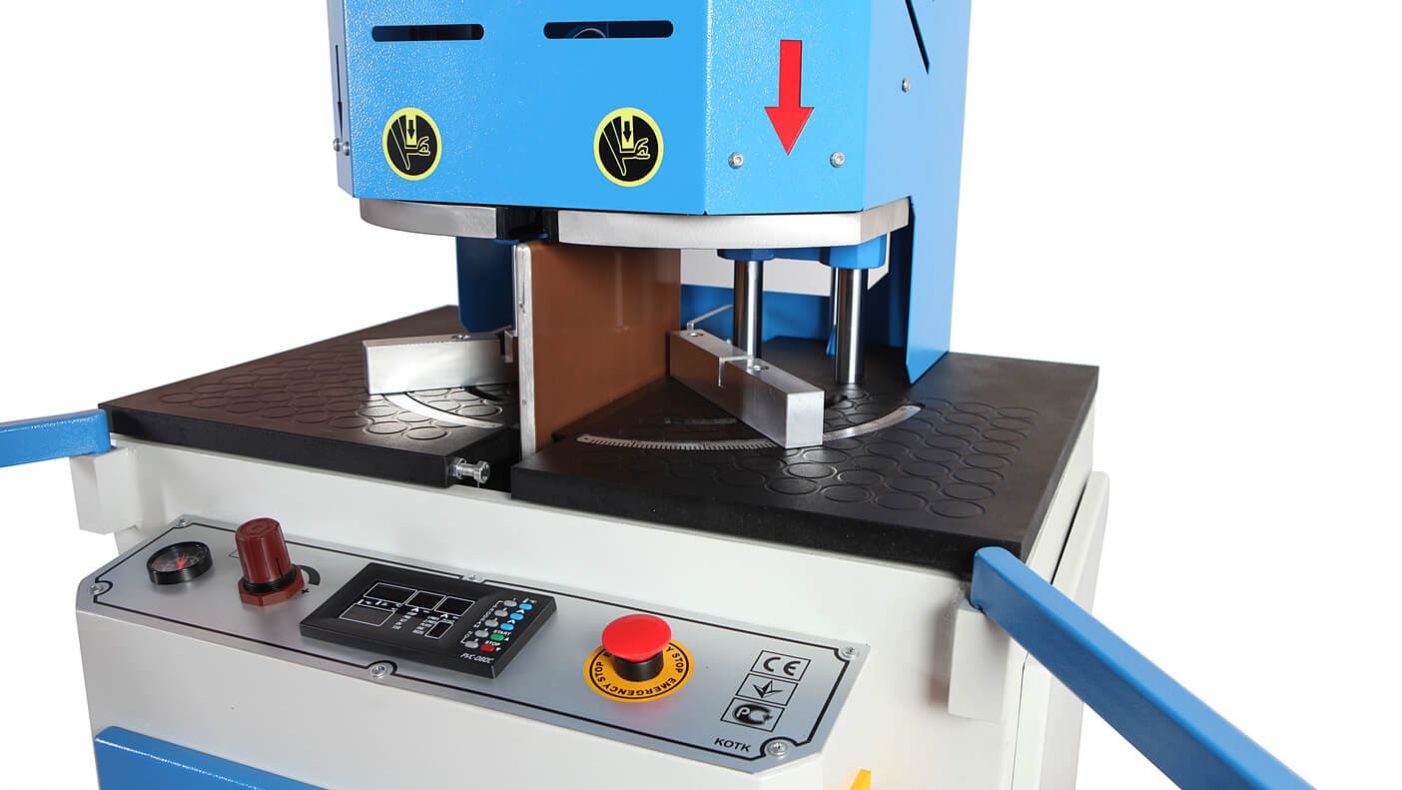

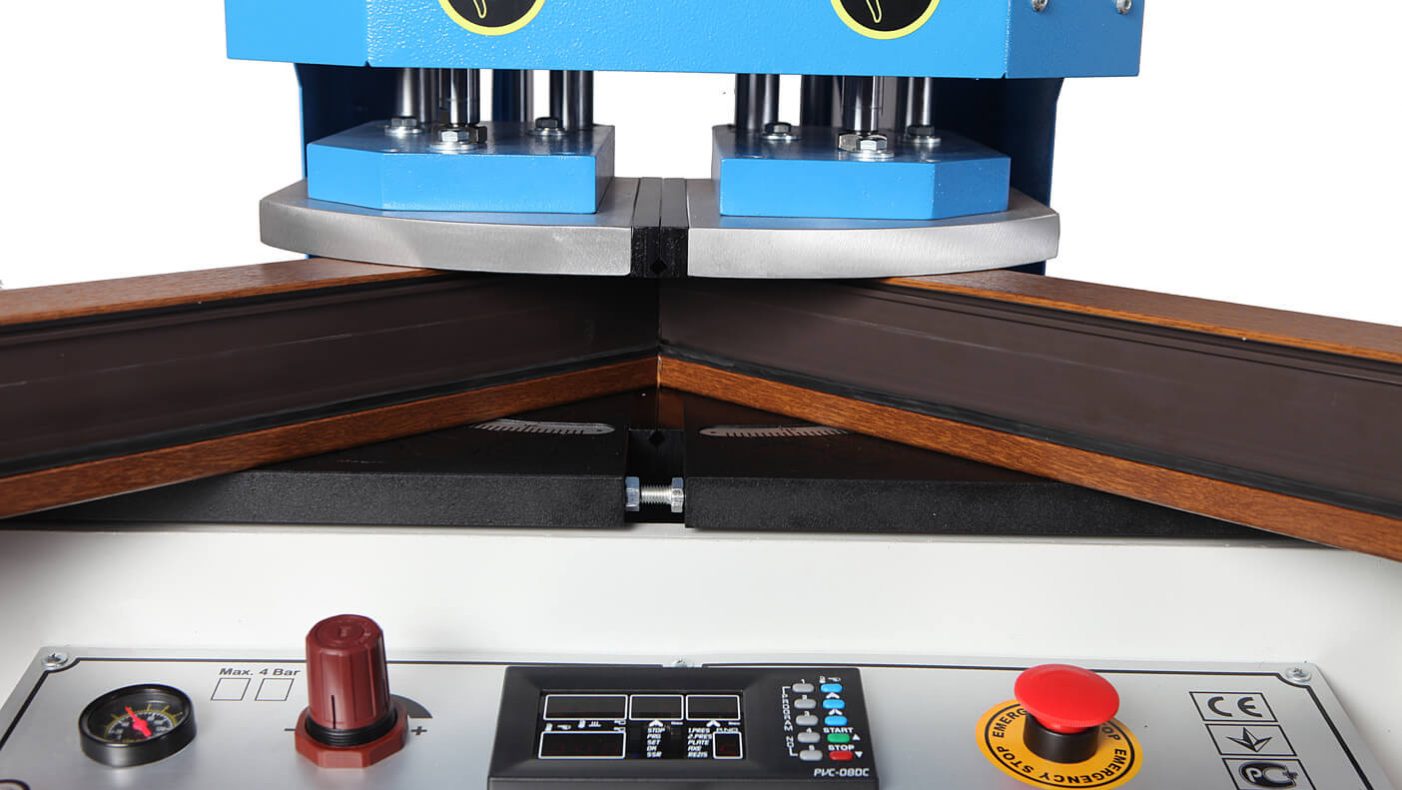

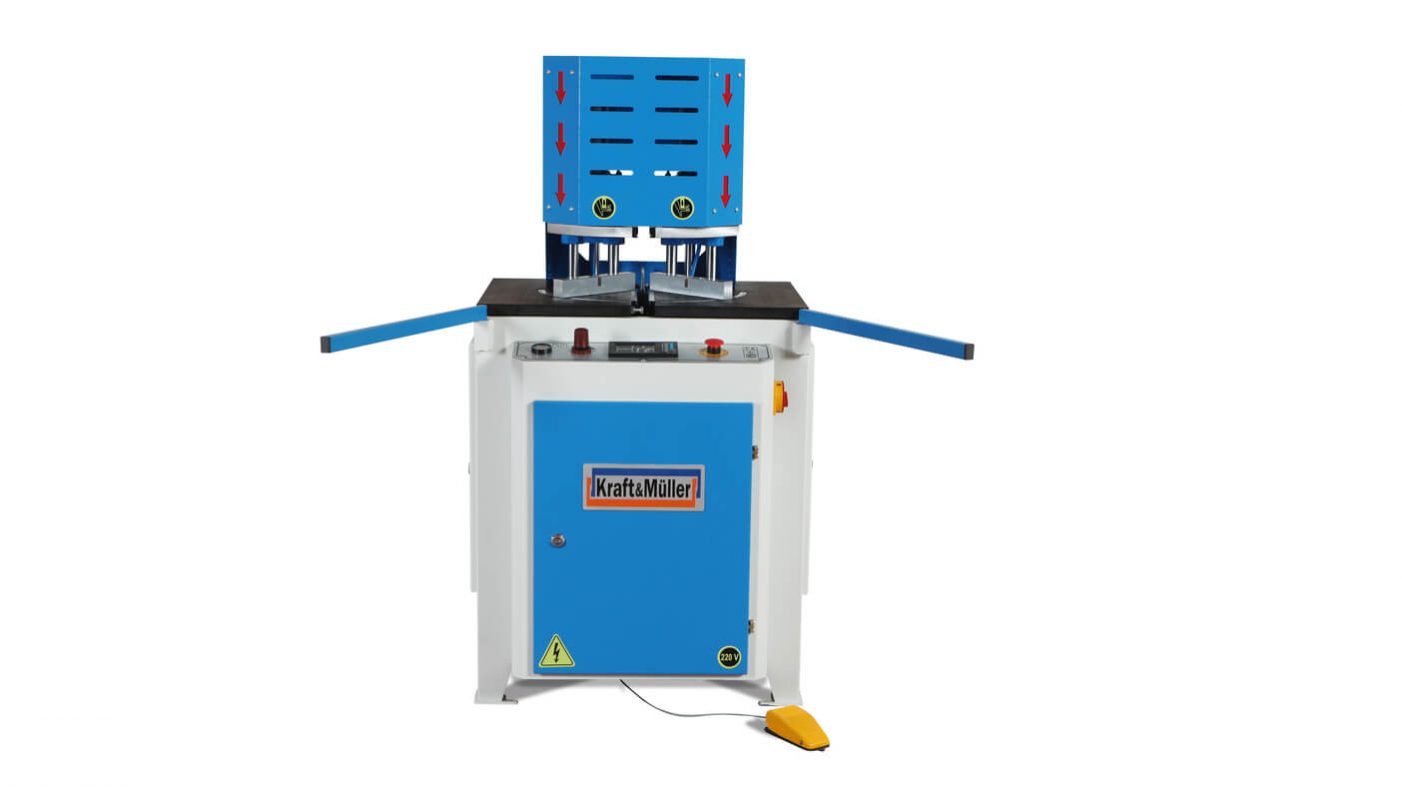

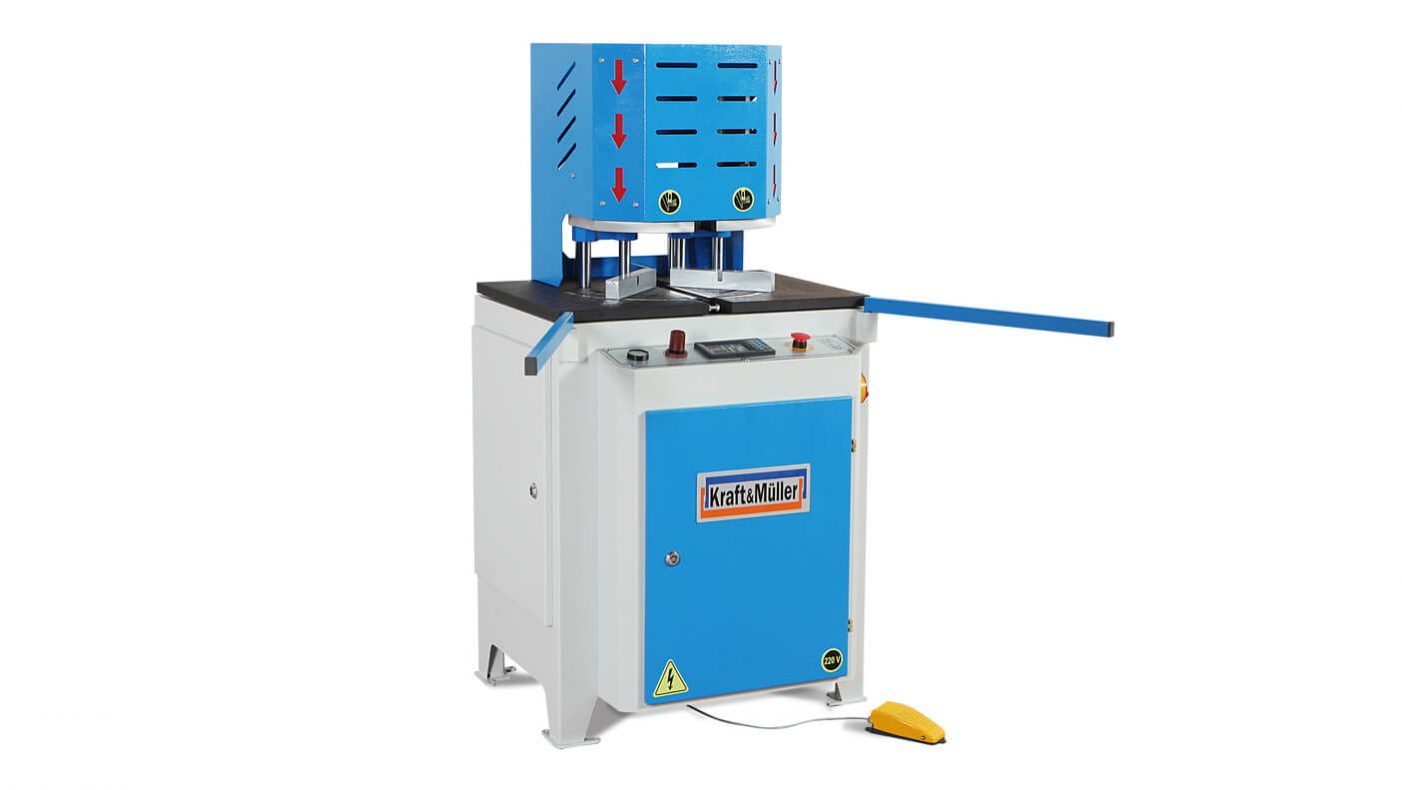

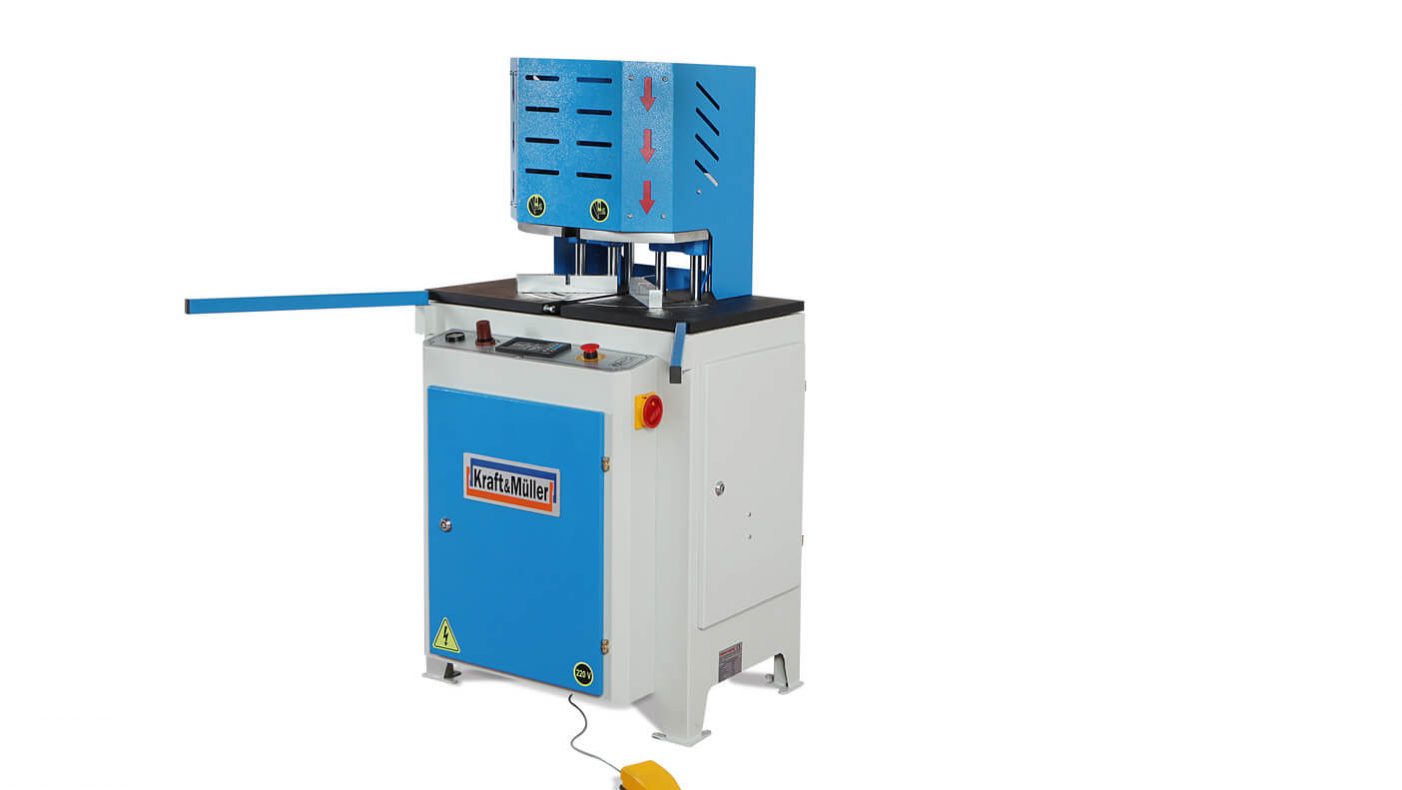

– Automatic Single Head uPVC Window Welding Machine for Window and Door Fabrication.
– Welding corner is regulated from 30° to 180° degrees.
– Zero welding capability 0.2mm thickness.

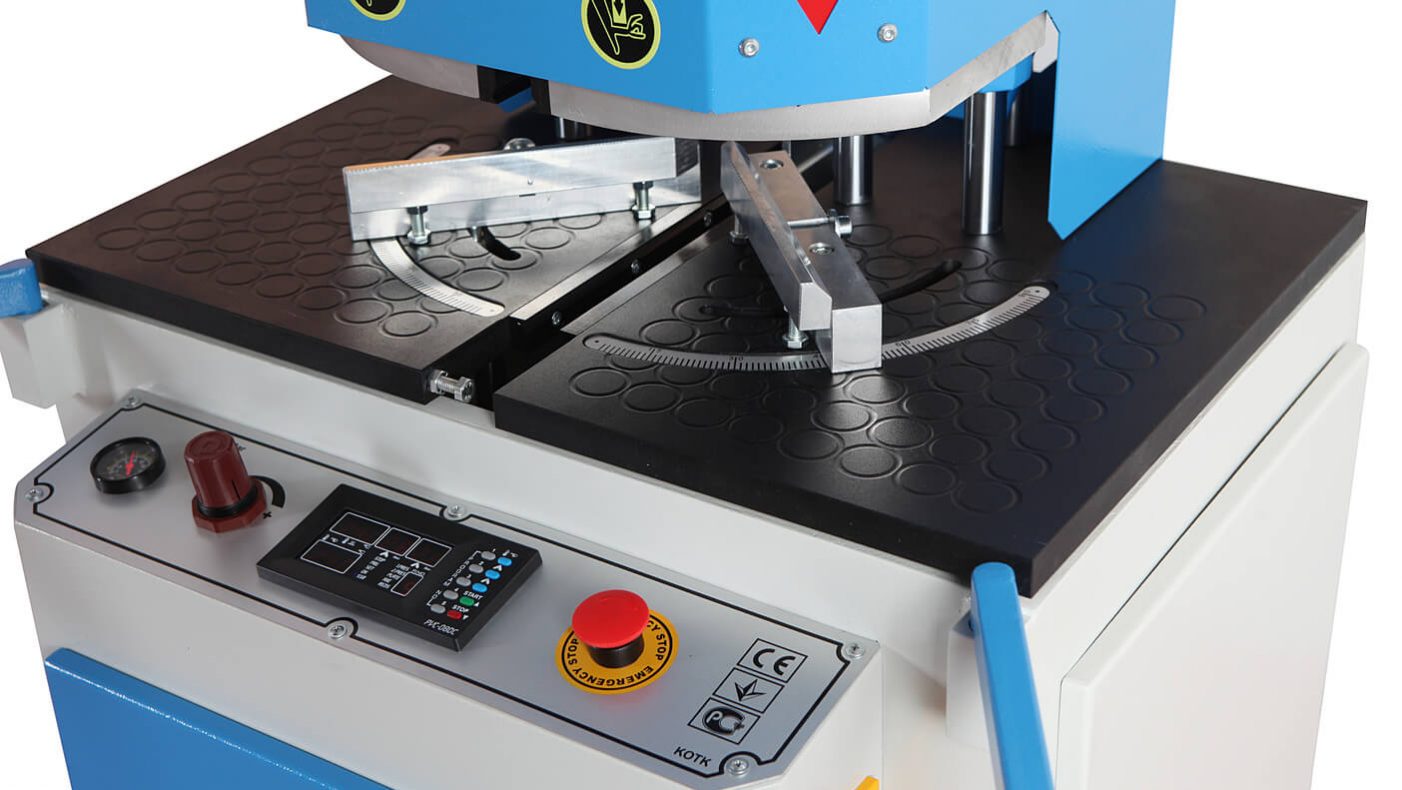

– Full Automatic Program Control System

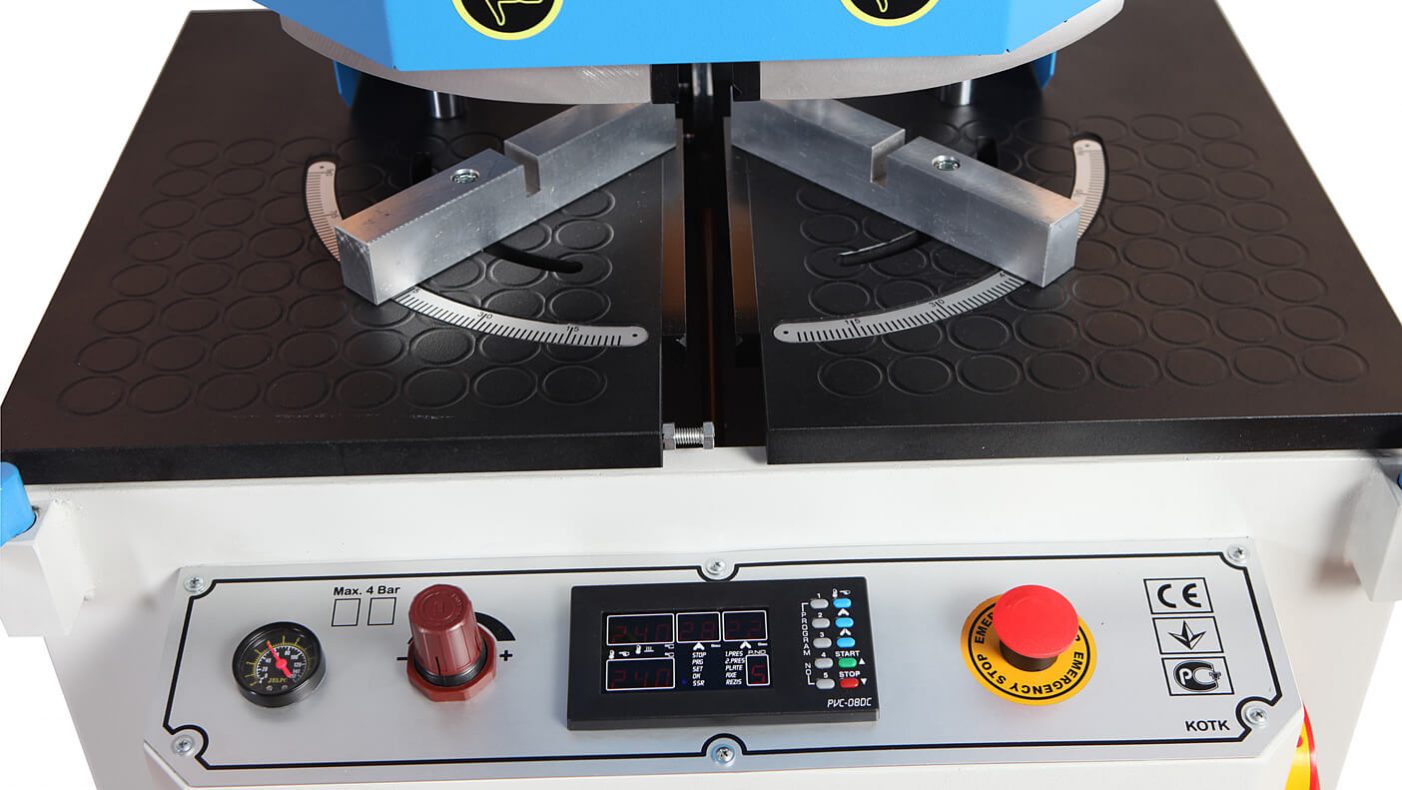

– Digital adjustment of heating, melting and cooling temperature and welding time.
– The option to save welding settings for 5 different profiles.

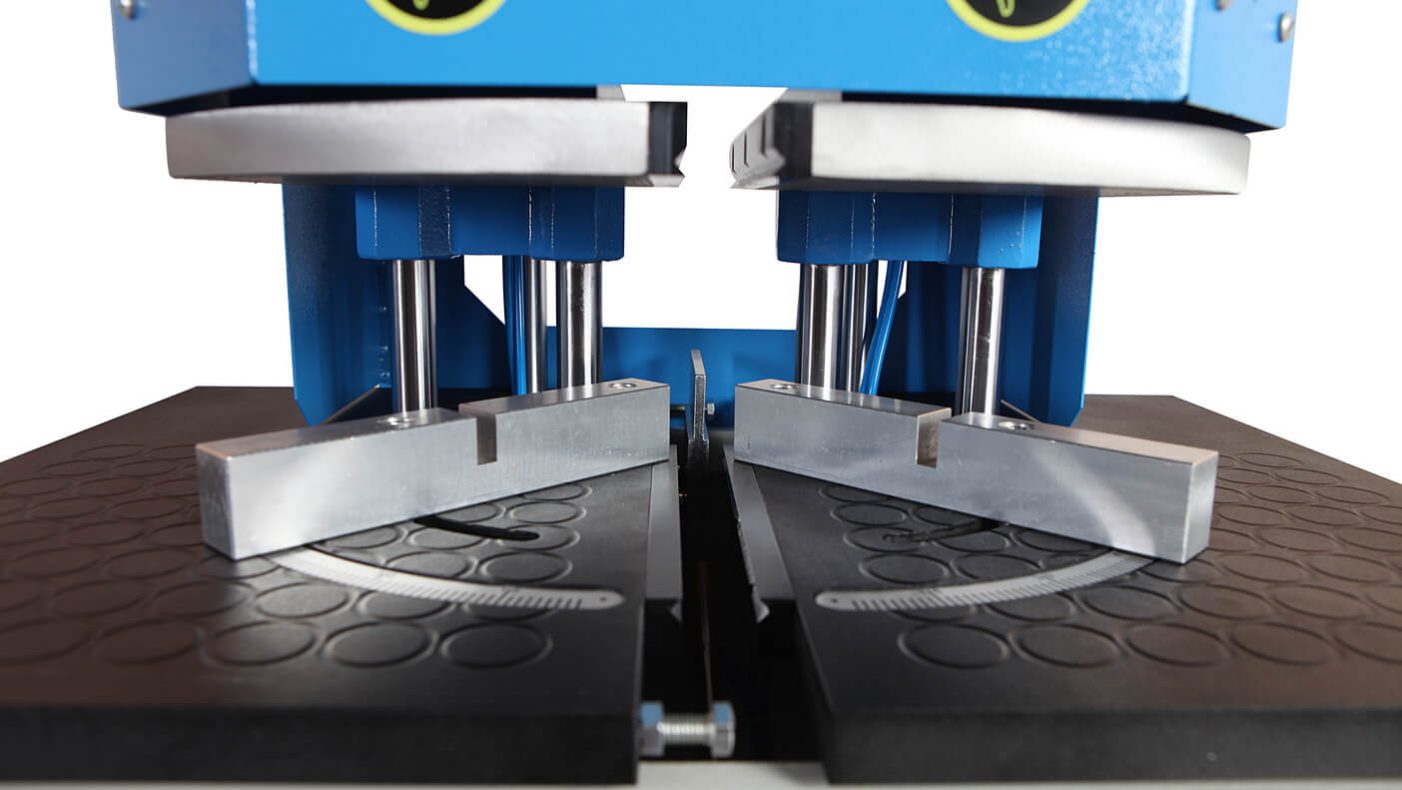

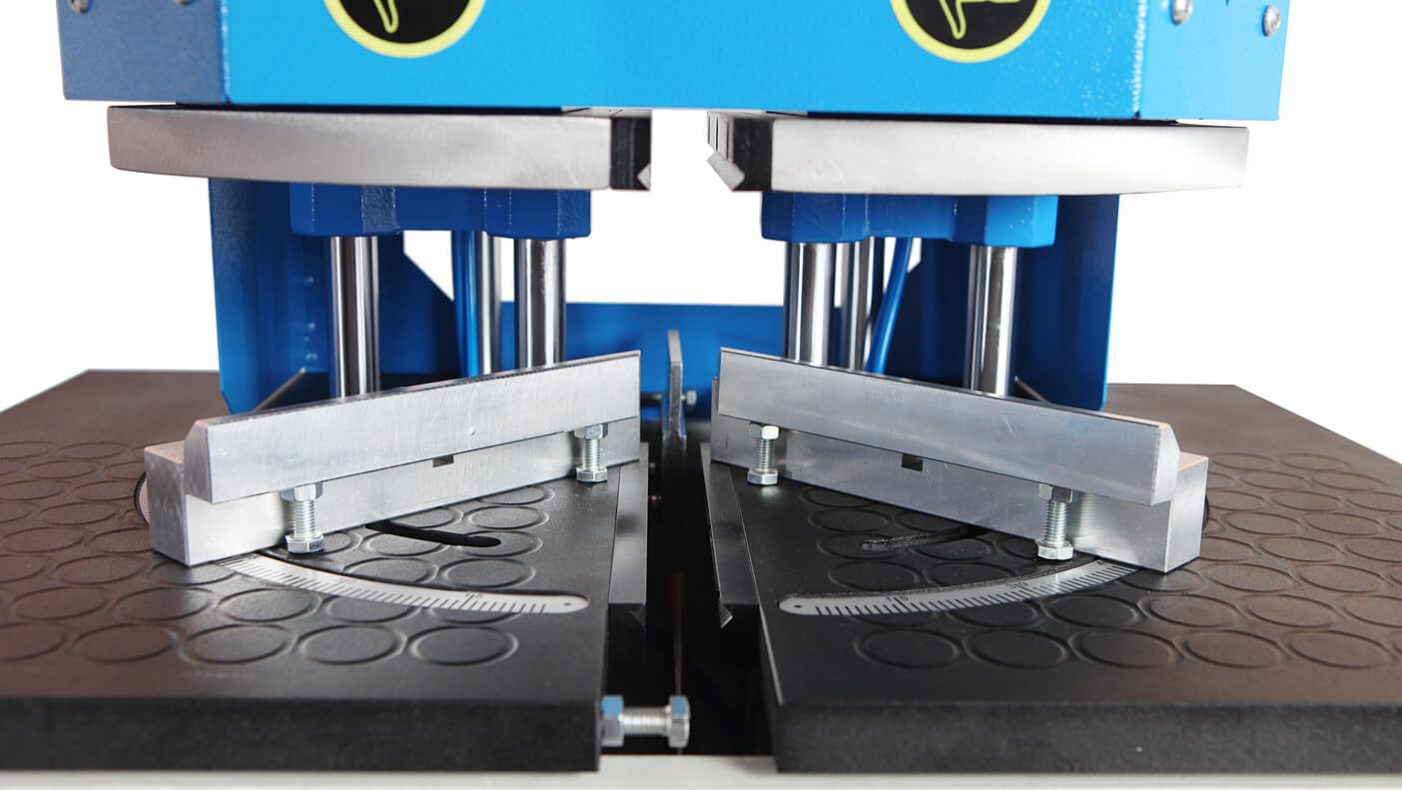

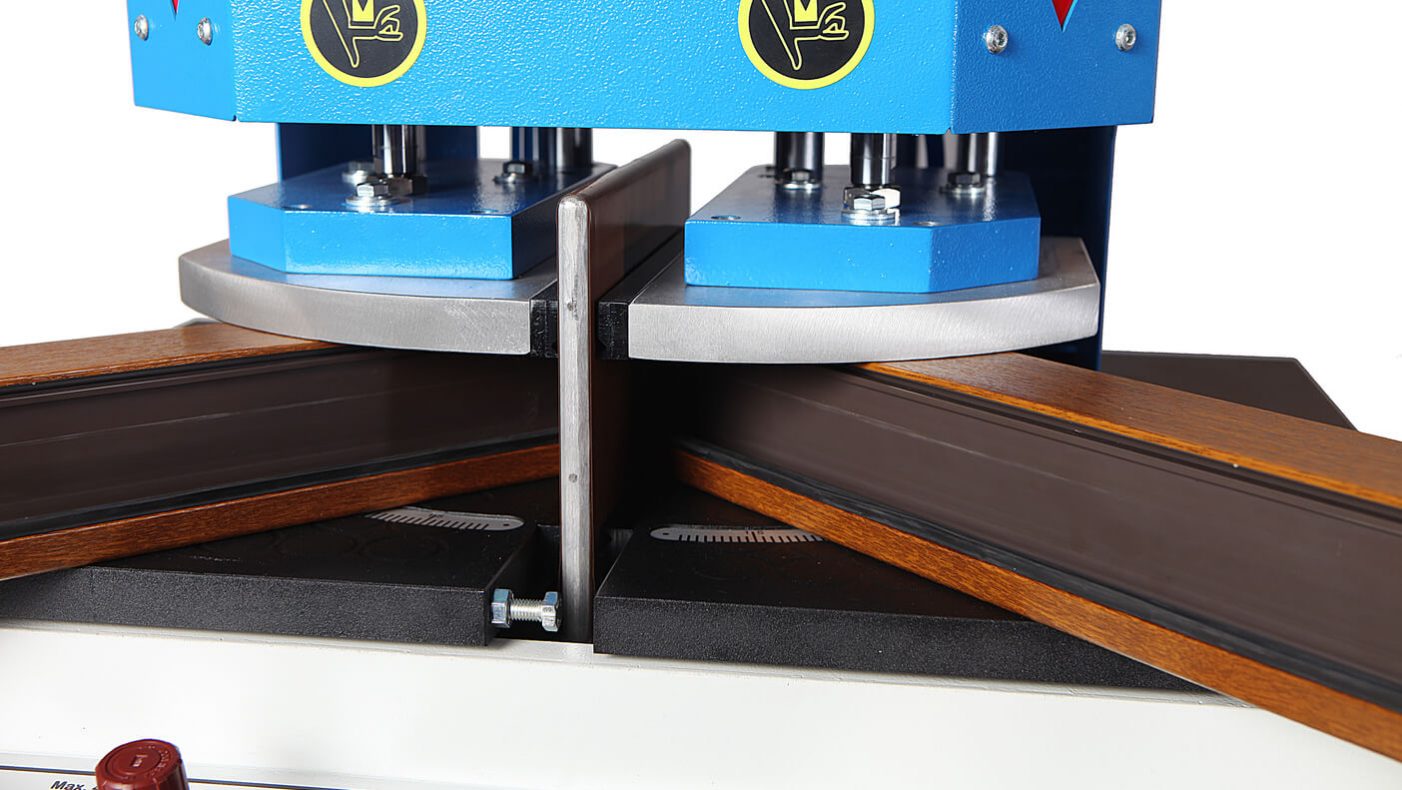

– Easily adjustable universal welding molds are included.
– Special blades for limitation welding seal.
– Easy changeable system of molds saves time at their replacement.
– Heating element has the thermostatic control.
– Teflon coated resistance.
– Footpedal control.
| STANDARD VOLTAGE | 220 V |
| FREQUENCY | 50 Hz |
| TOTAL POWER | 1.5 KW |
| AIR PRESSURE | 6 Bar Min. |
| AIR TRANSPORT | 2.30 Lt. Min. |
| MACHINE WIDTH | 730 mm. |
| MACHINE LENGTH | 630 mm. |
| MACHINE HEIGHT | 1400 mm. |
| MACHINE WEIGHT | 163 Kg. |
