TECHNICAL SPECIFICATIONS

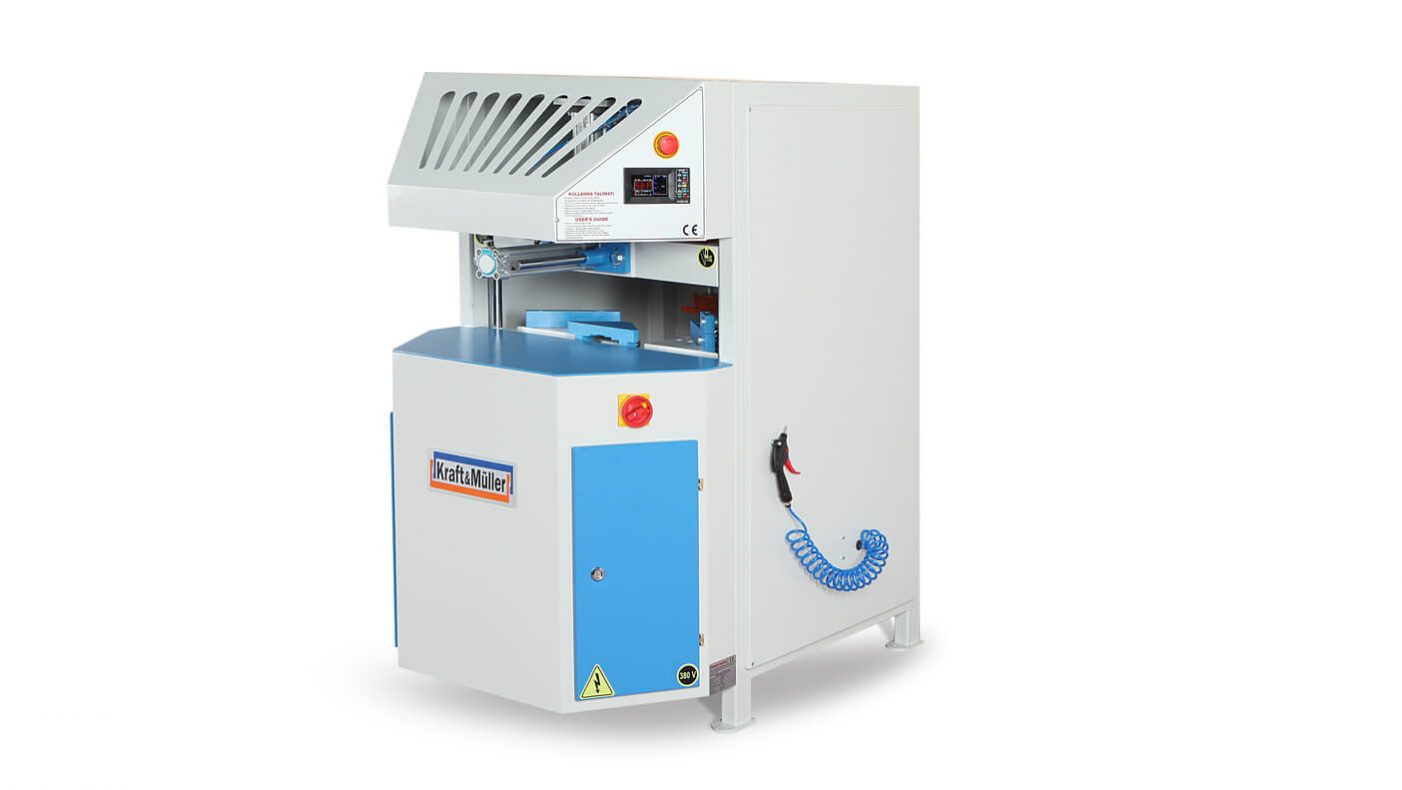

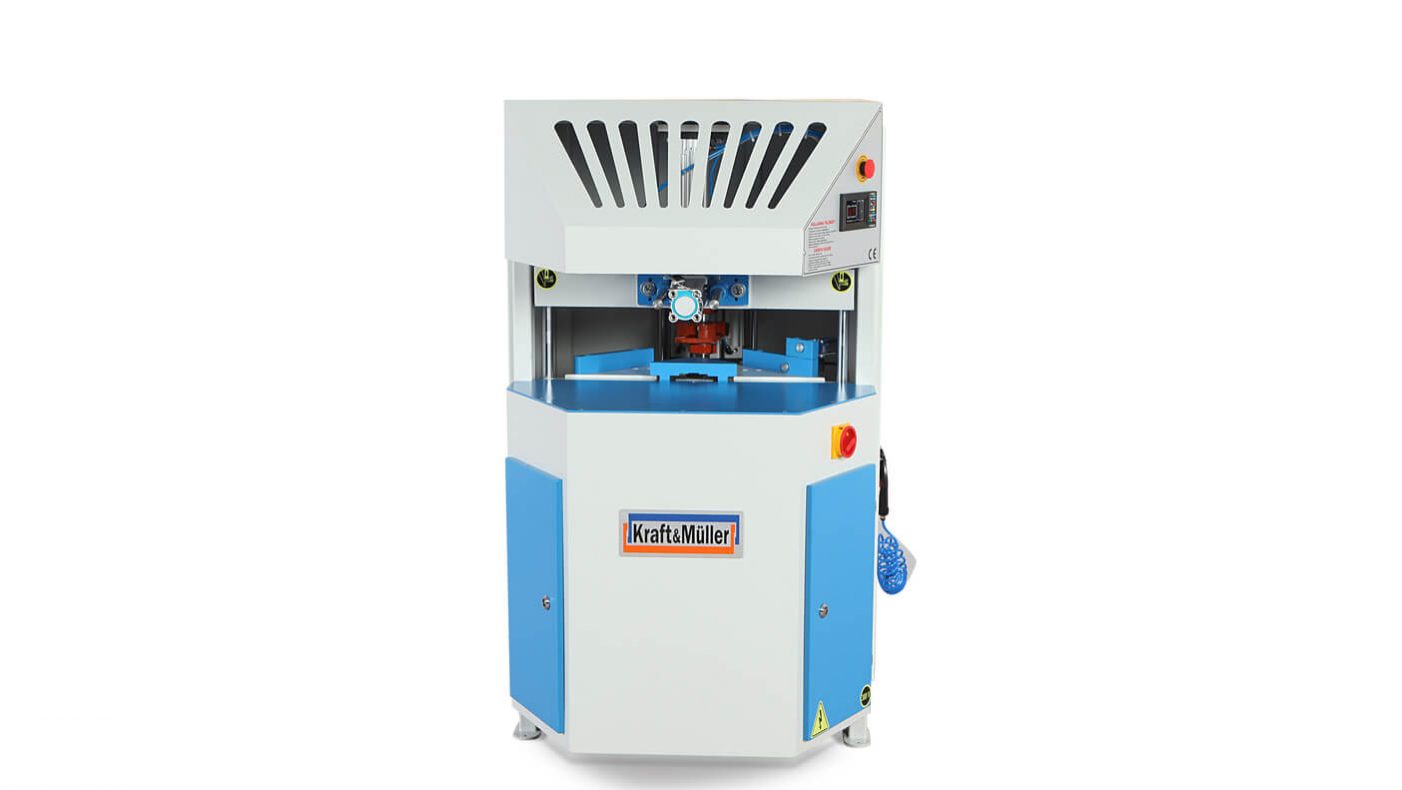

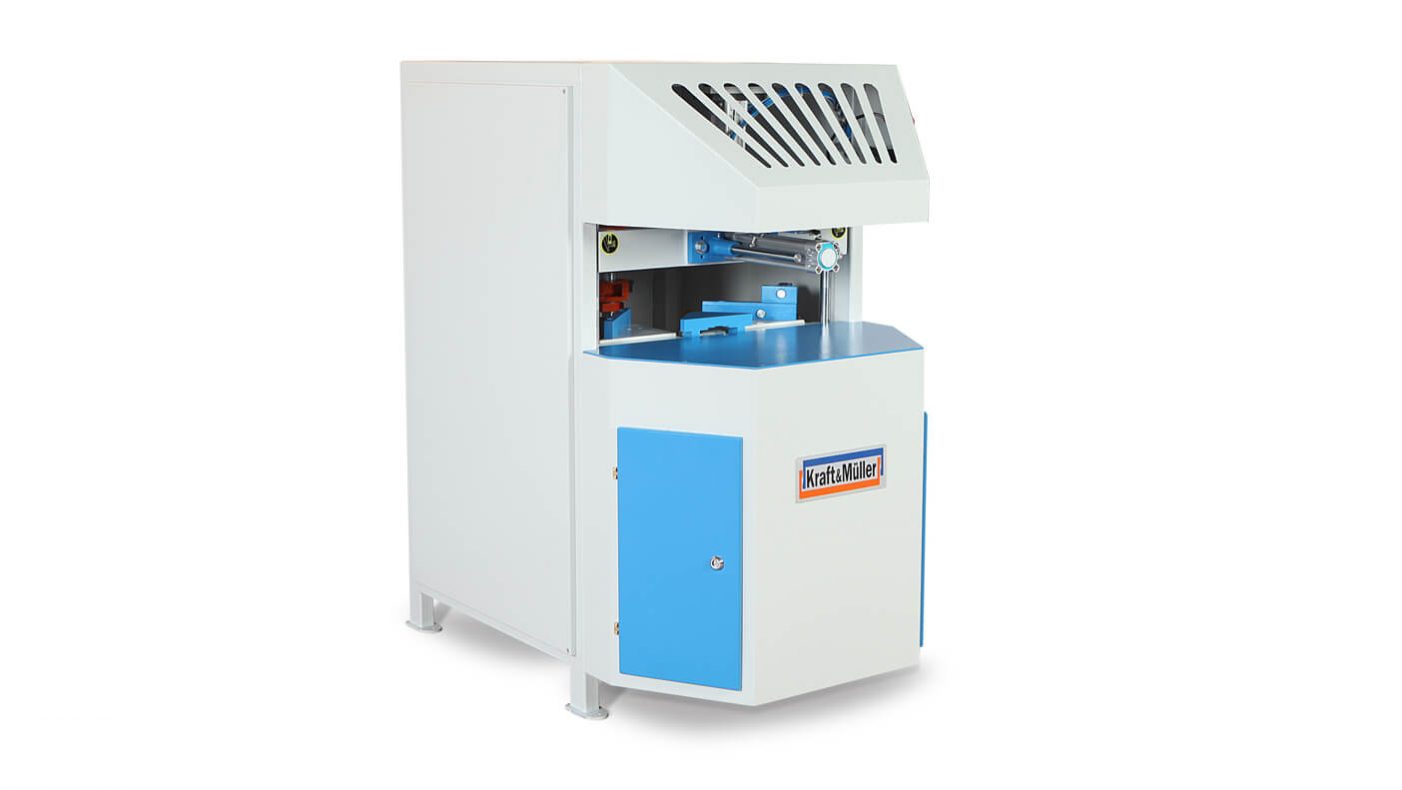

– Automatic uPVC Window Corner Cleaning Machine.

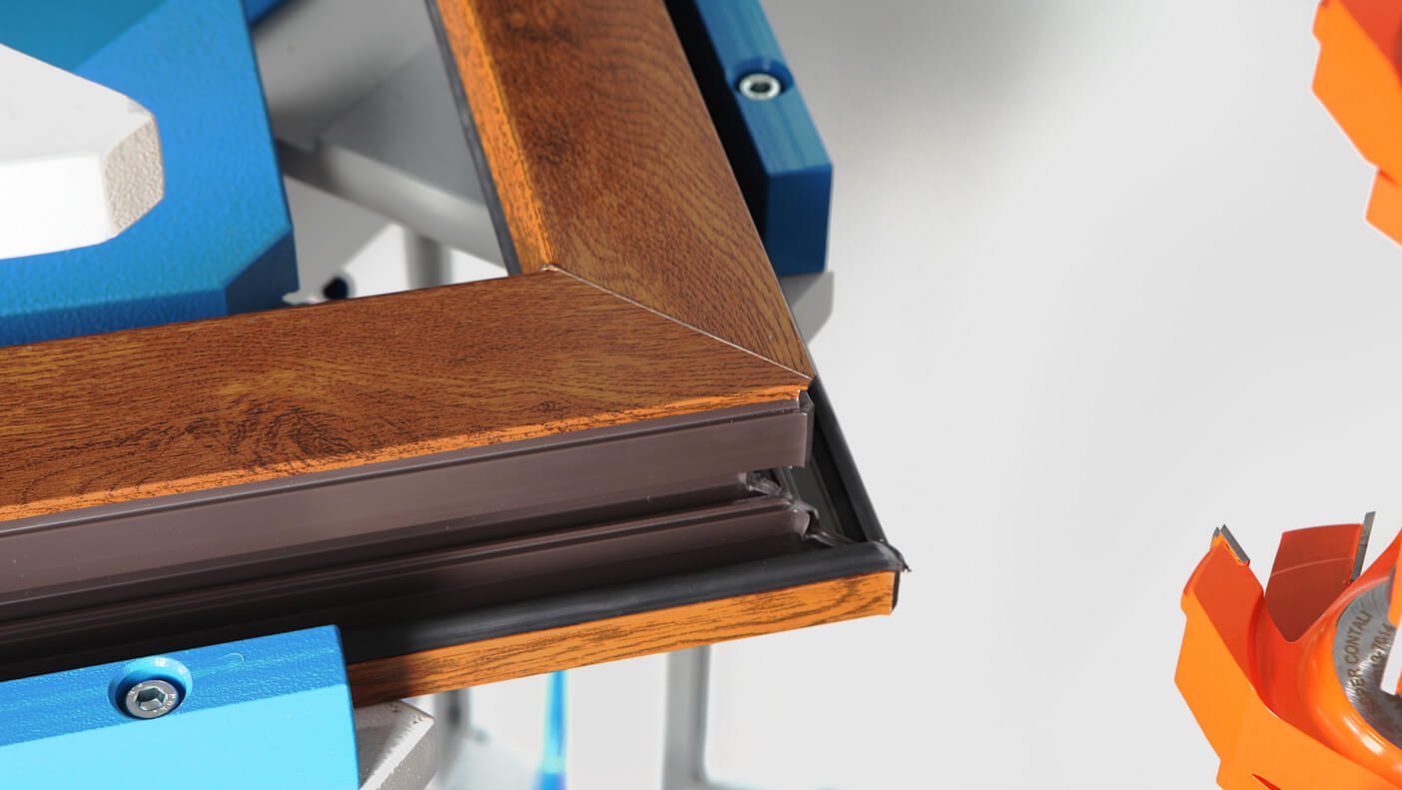

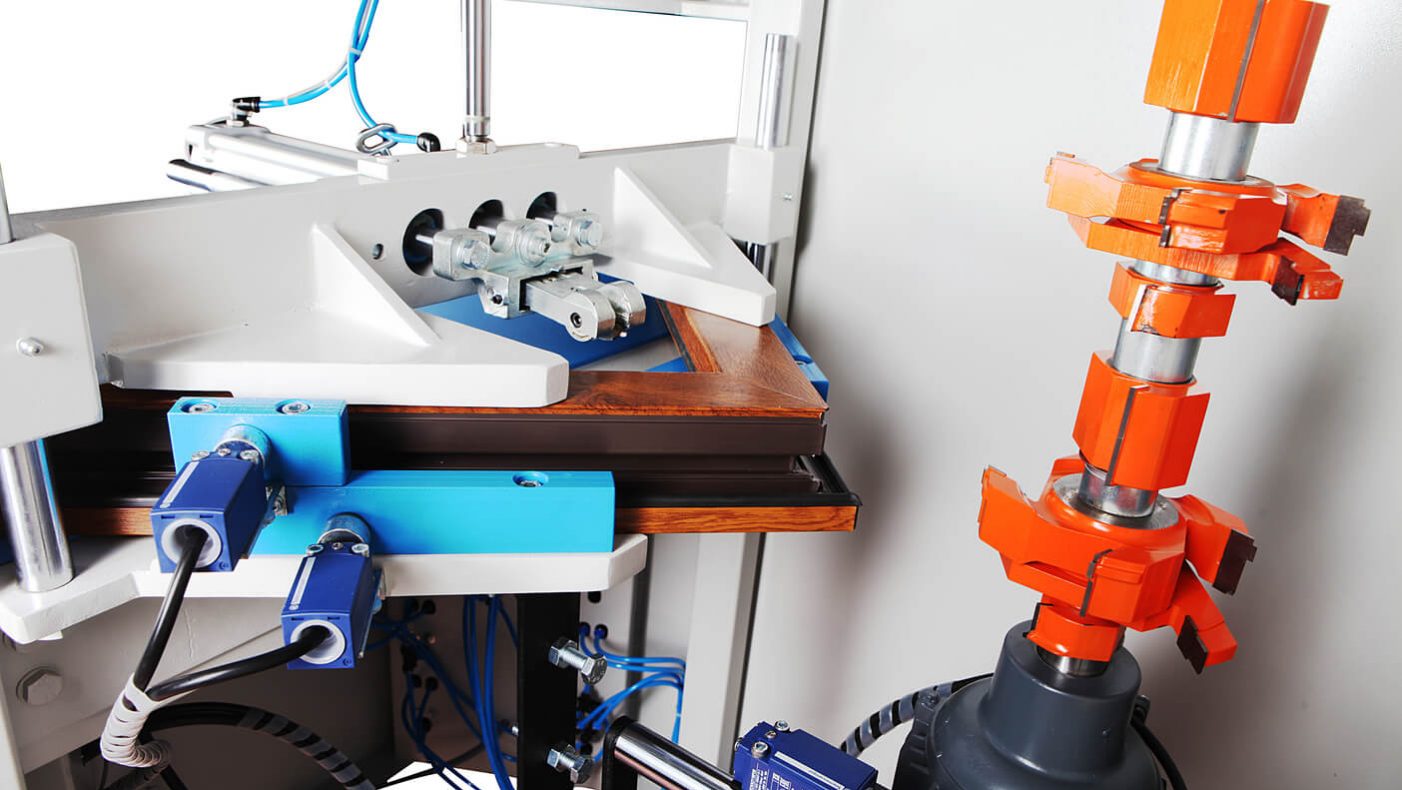

– The machine has designed to clean the bottom, top and out sides of welding scraps that occur after pvc welding process.

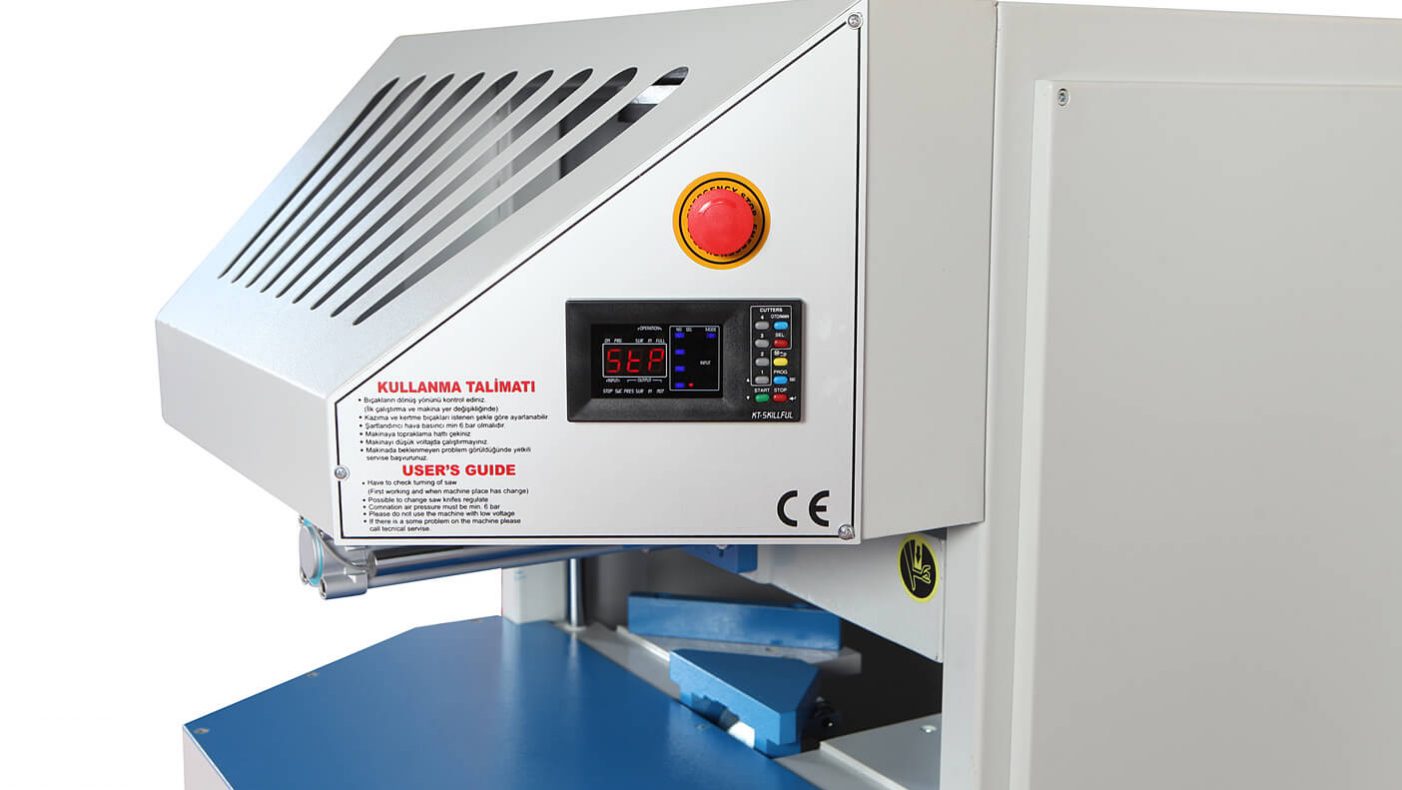

– The machine has Full Automatic Program Control System.

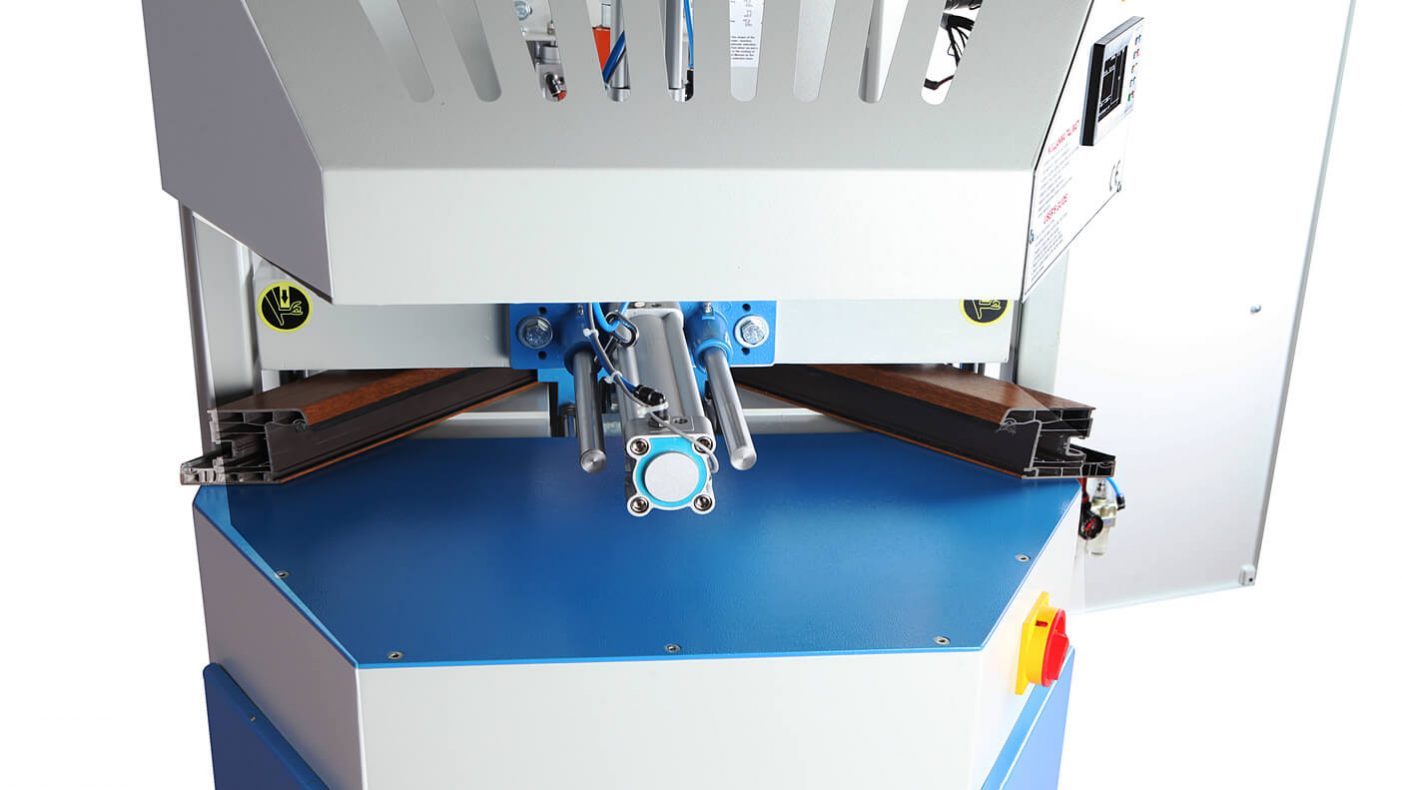

– Profile recognition system allows user to use machine without pushing any button.

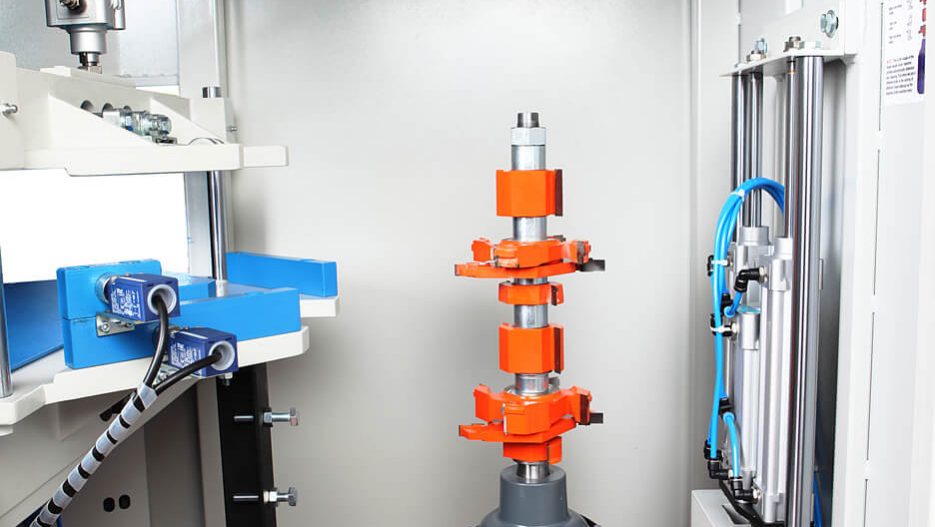

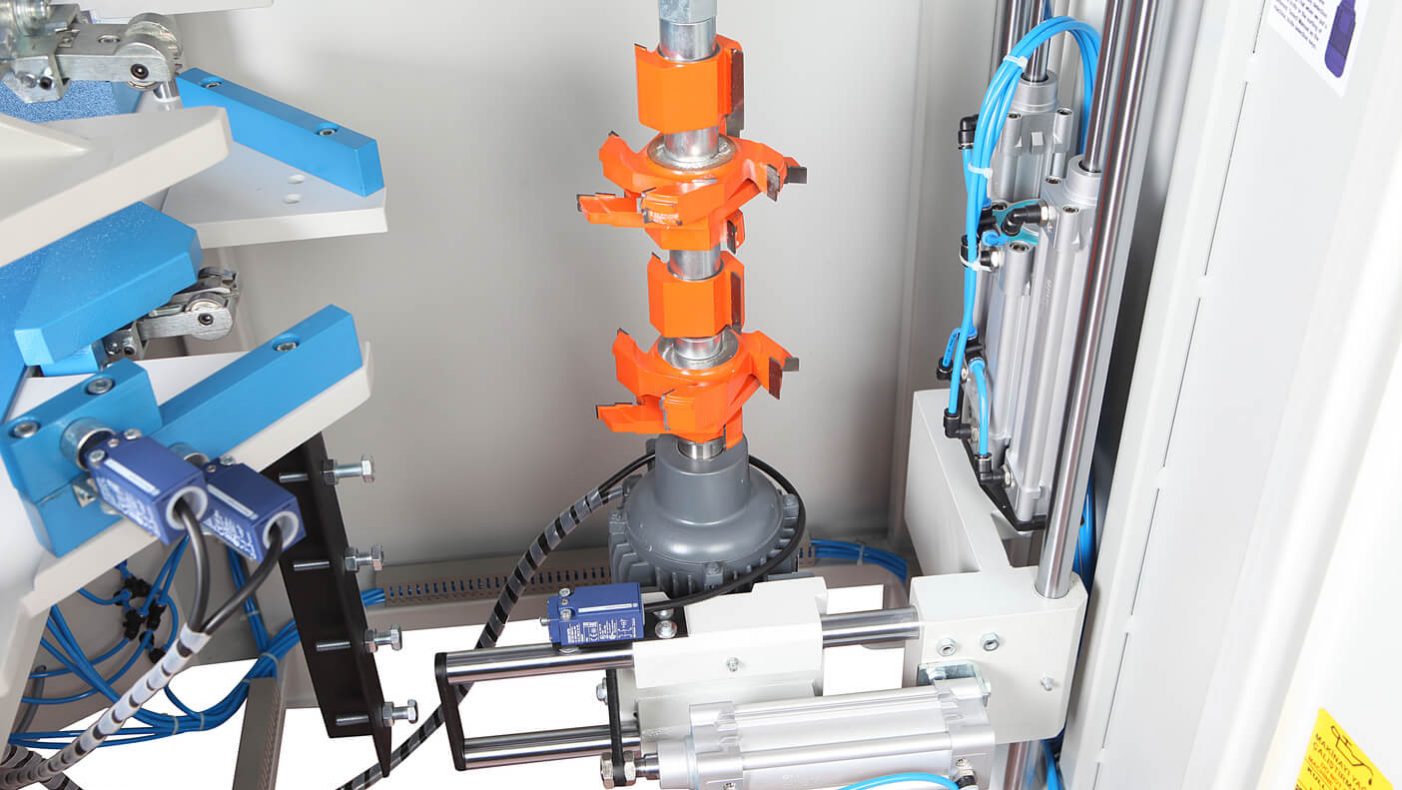

– 4 different blades can be mounted.
– Easy blade changing system saves time for operators.
– Each blade has own adjustment system, they can be adjusted seperately.

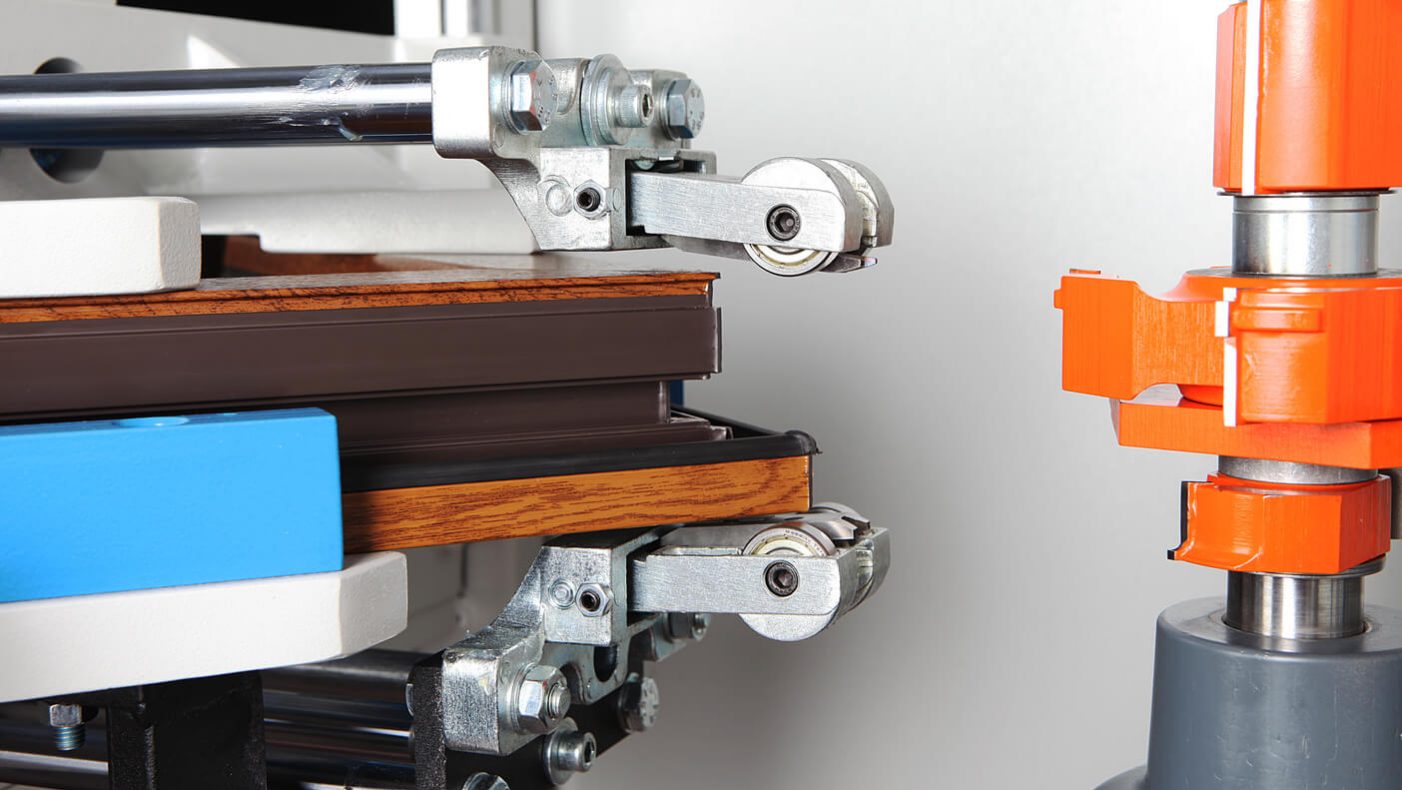

– 2 pieces of double sided scraper blades are incuded, flat and channeled scraping is possible.
– Operation speed can be adjustable.

STANDARD VOLTAGE380 V
FREQUENCY50 Hz
TOTAL POWER1.1 KW
AIR PRESSURE6 Bar Min.
AIR TRANSPORT2.40 Lt. Min.
MACHINE WIDTH1110 mm.
MACHINE LENGTH820 mm.
MACHINE HEIGHT1450 mm.
MACHINE WEIGHT207 Kg.
