TECHNICAL SPECIFICATIONS

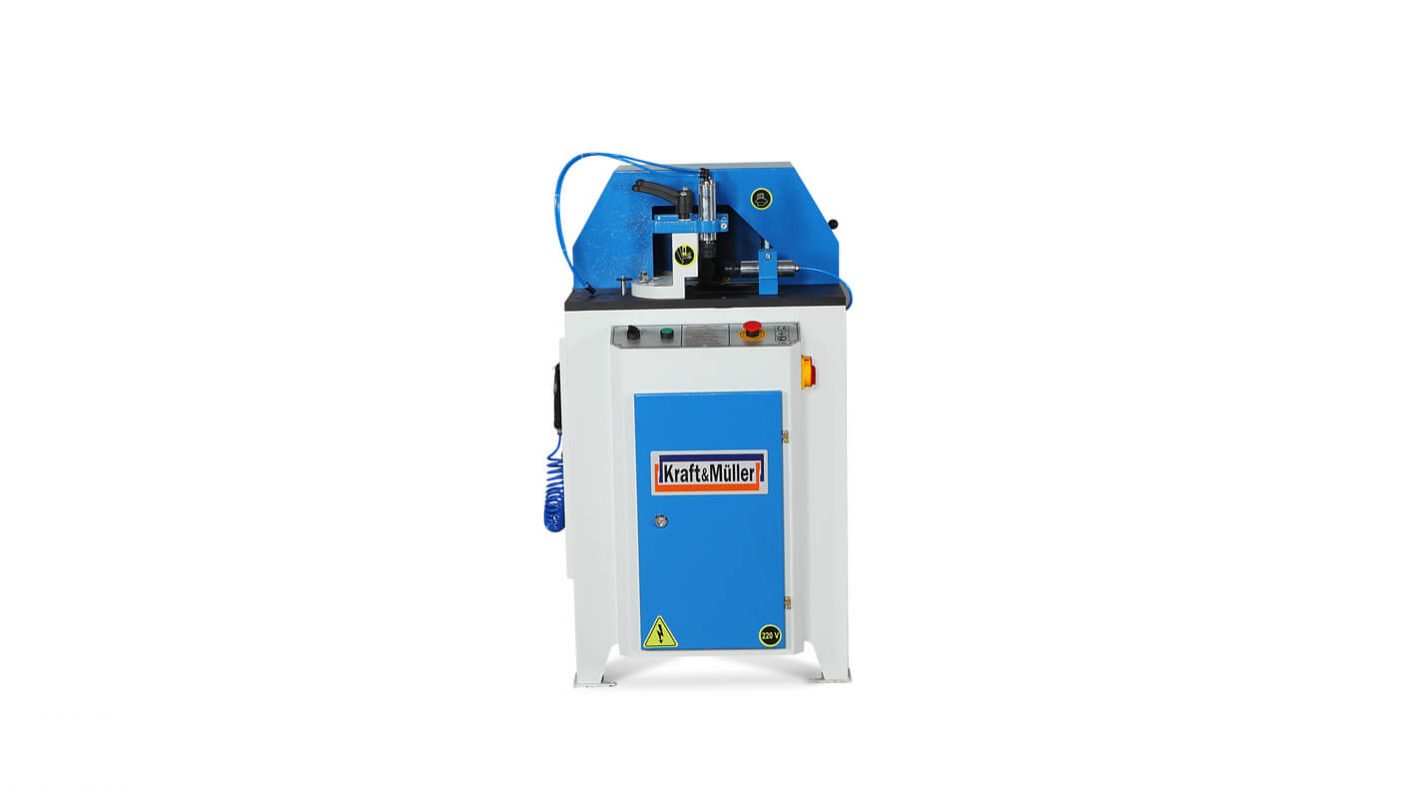

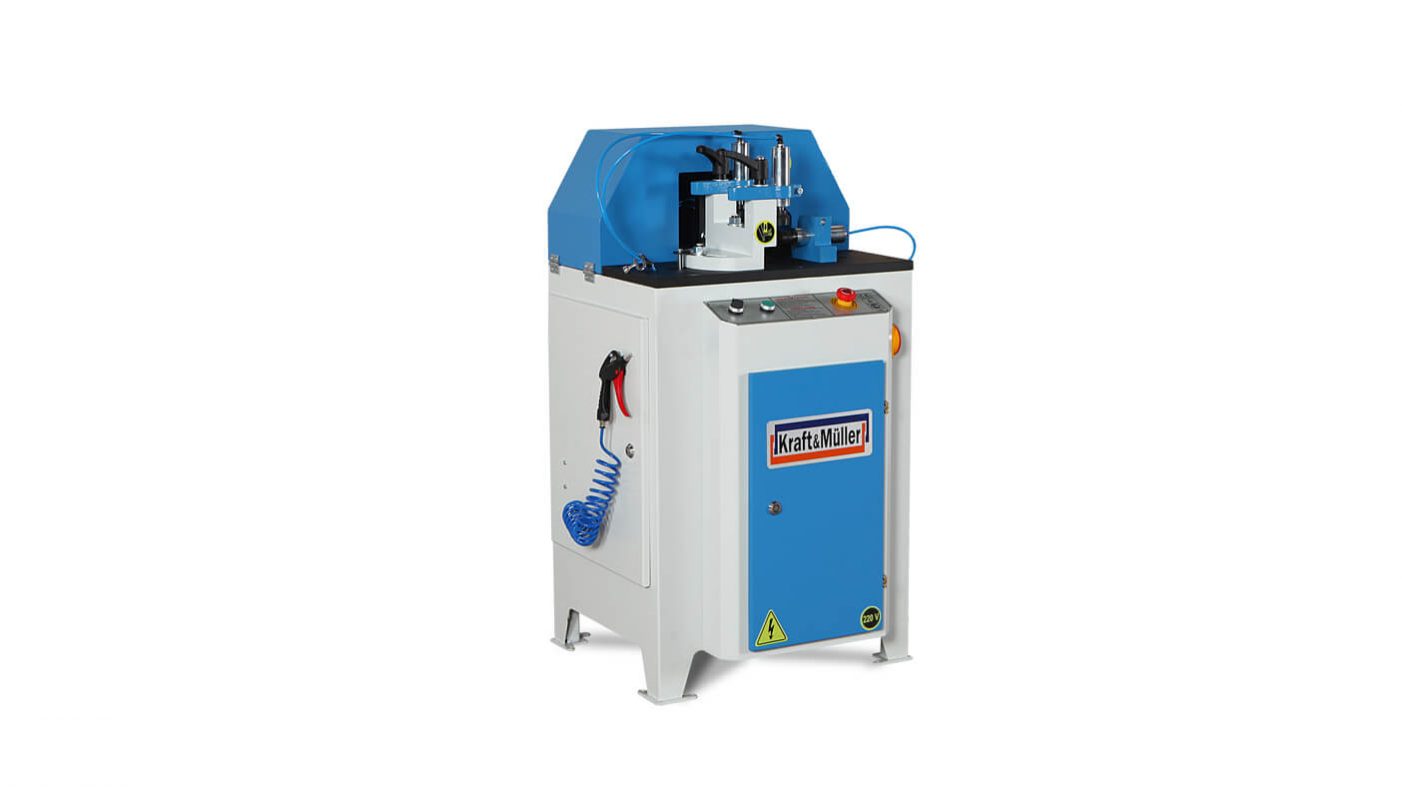

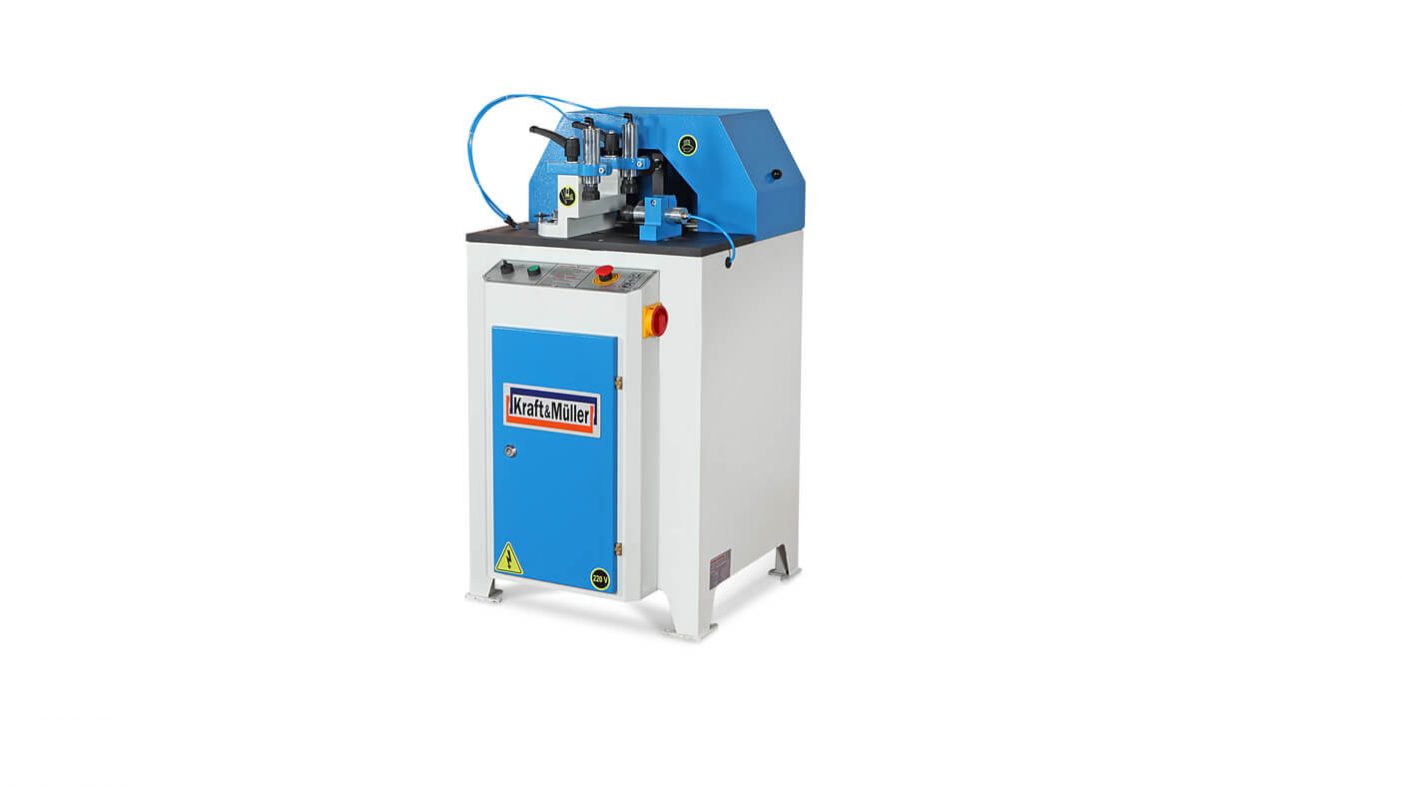

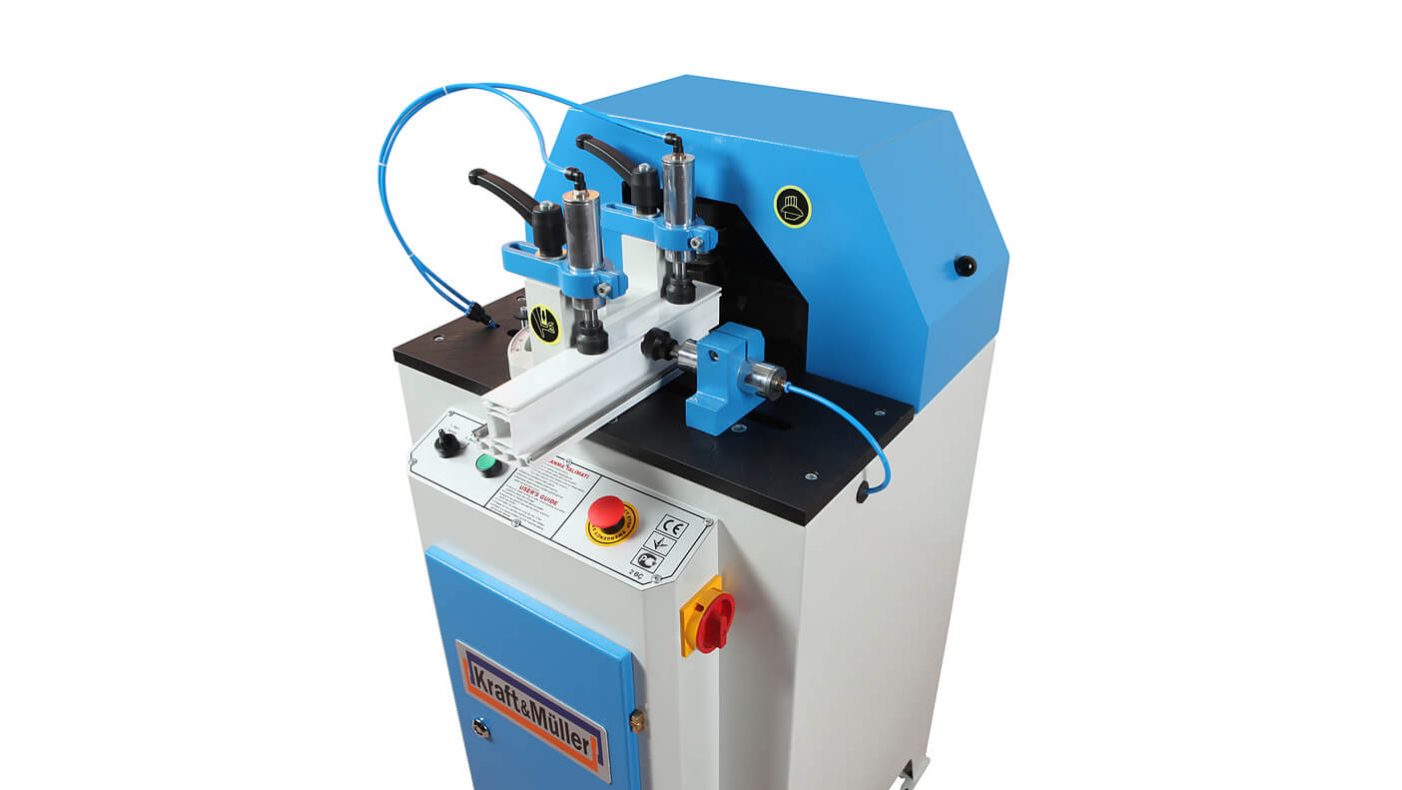

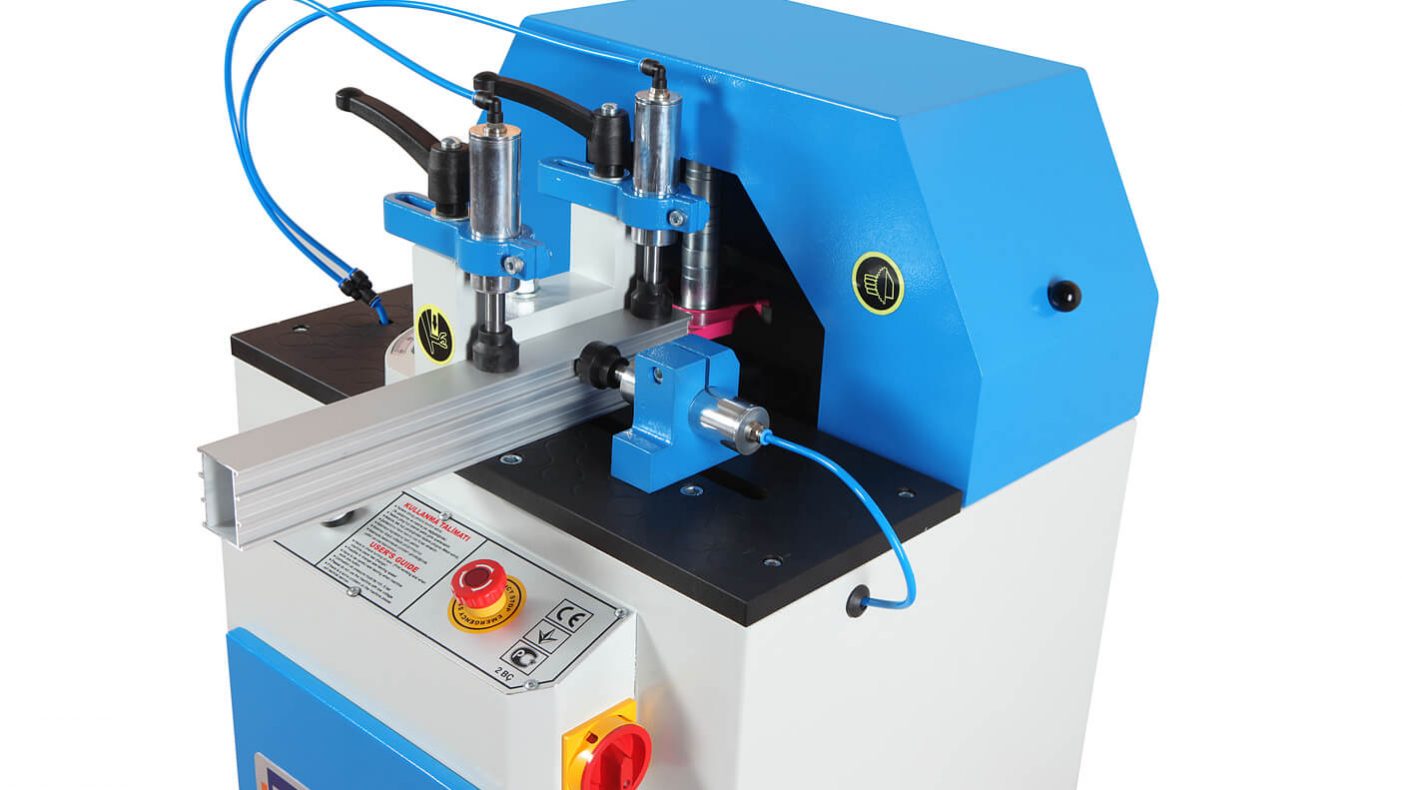

End Milling Machine has designed to make end milling operation for uPVC and Aluminium mullion profiles.

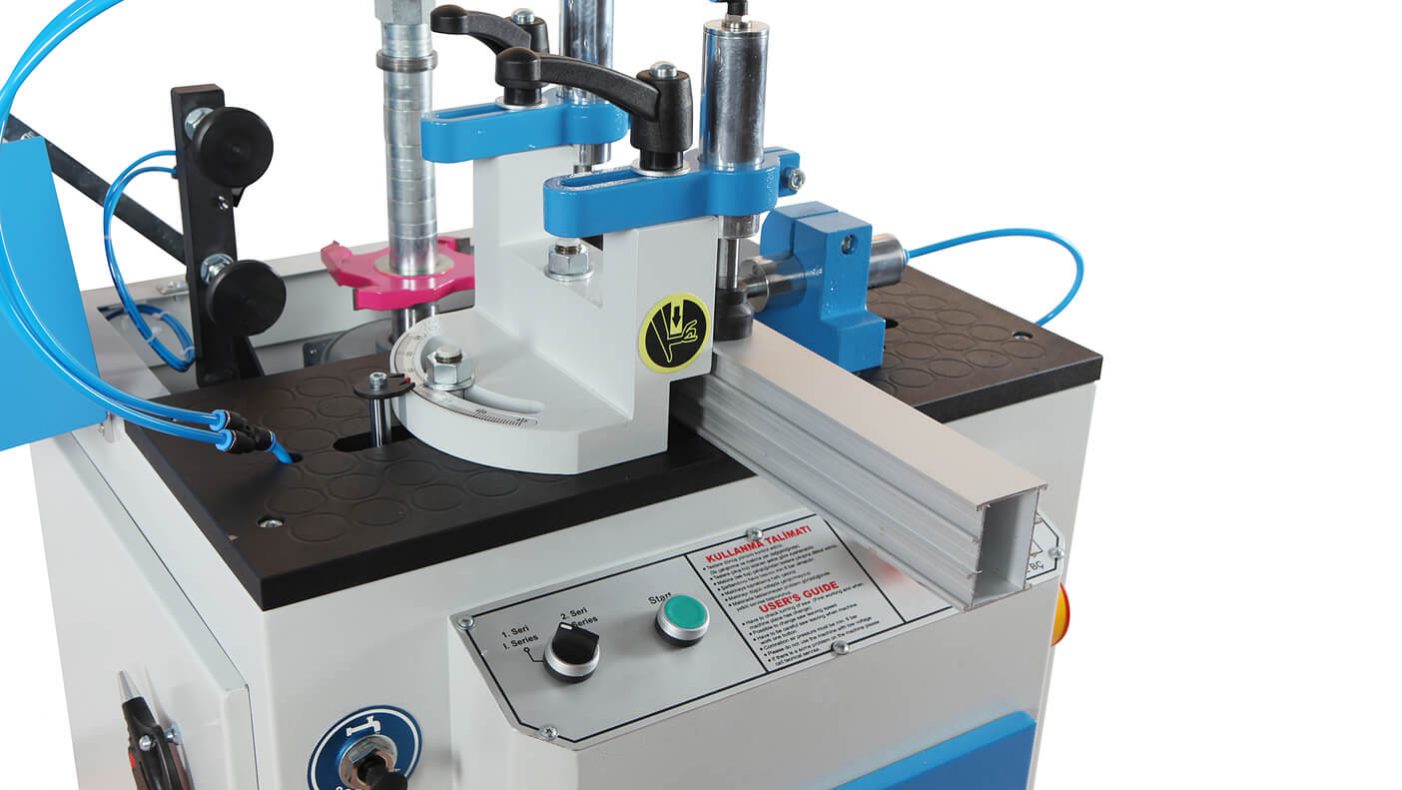

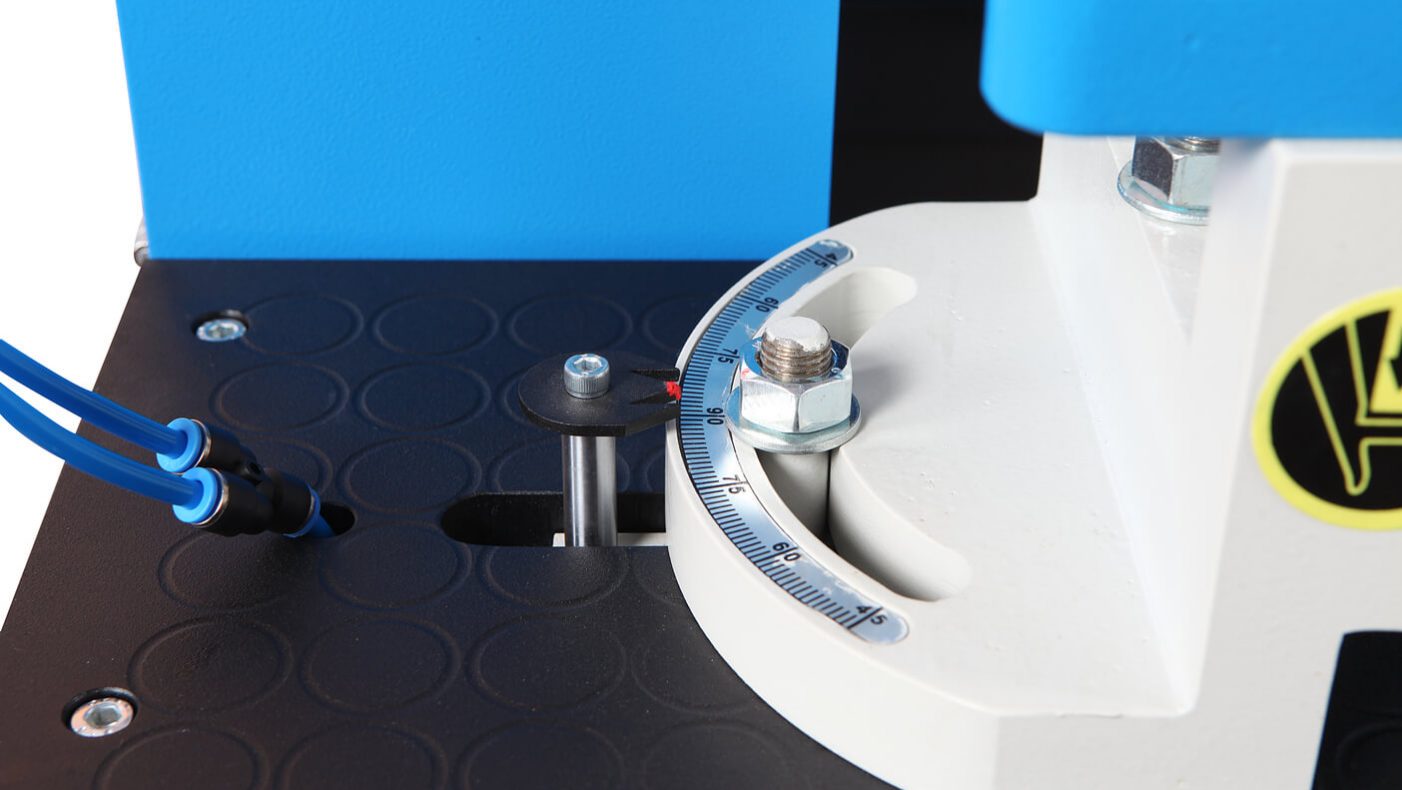

– Cutting range between +45° / -45.

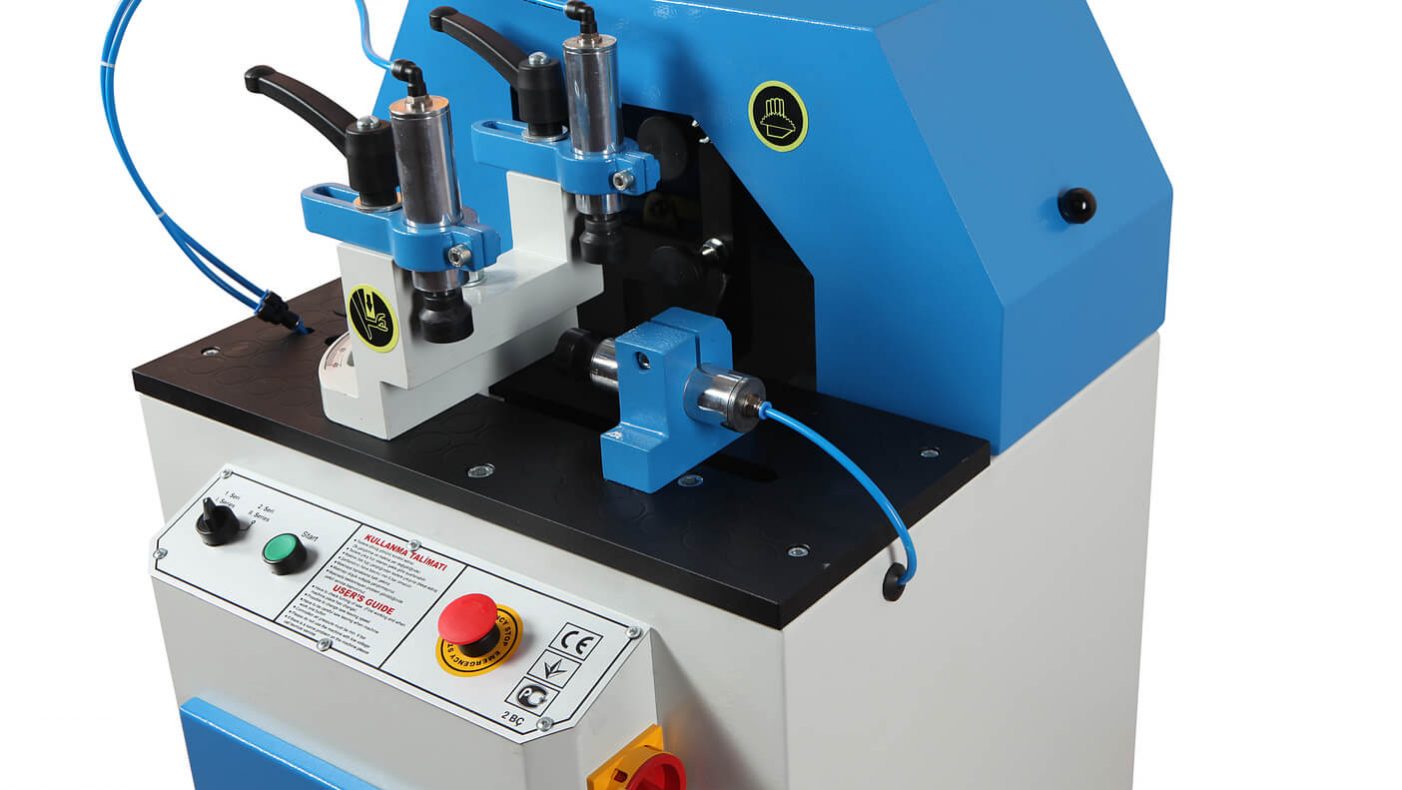

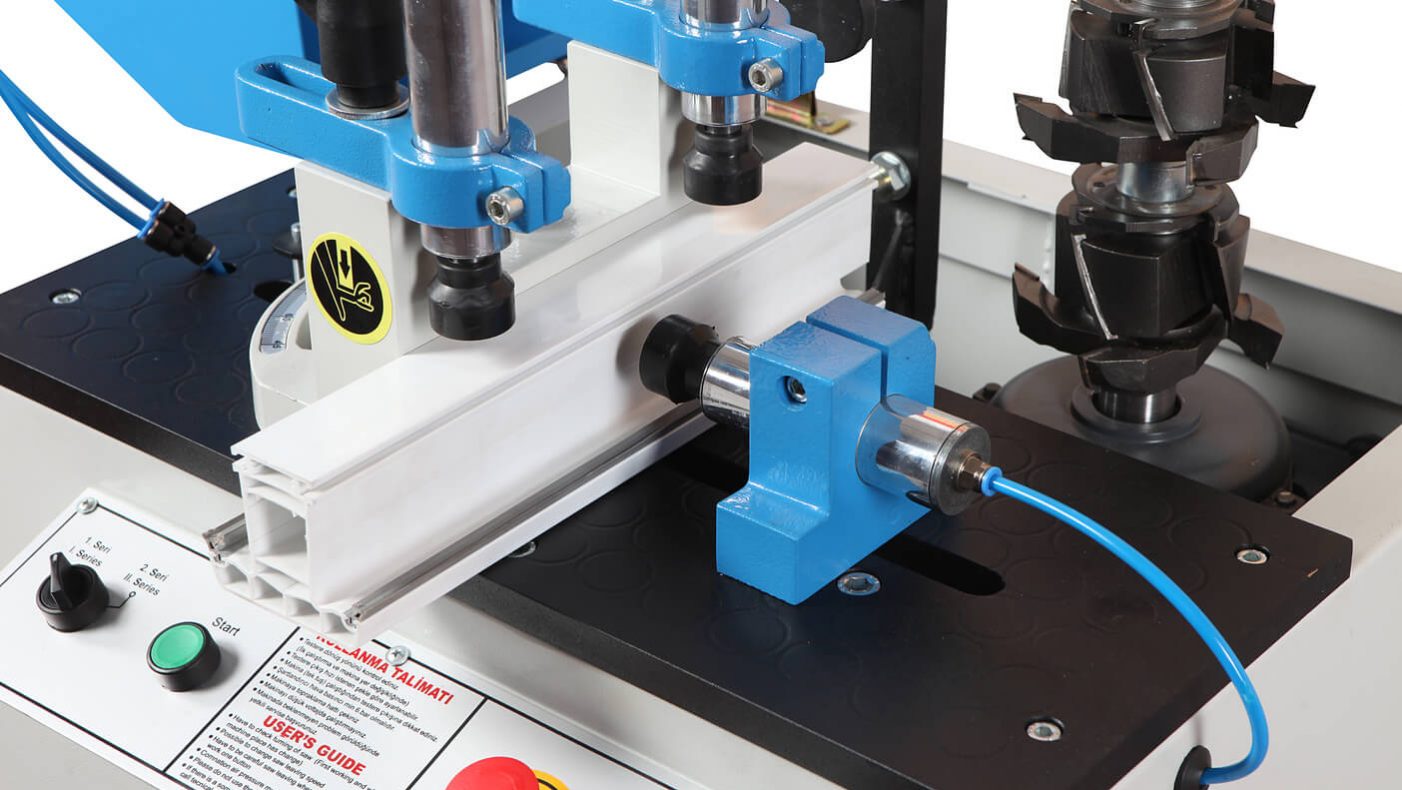

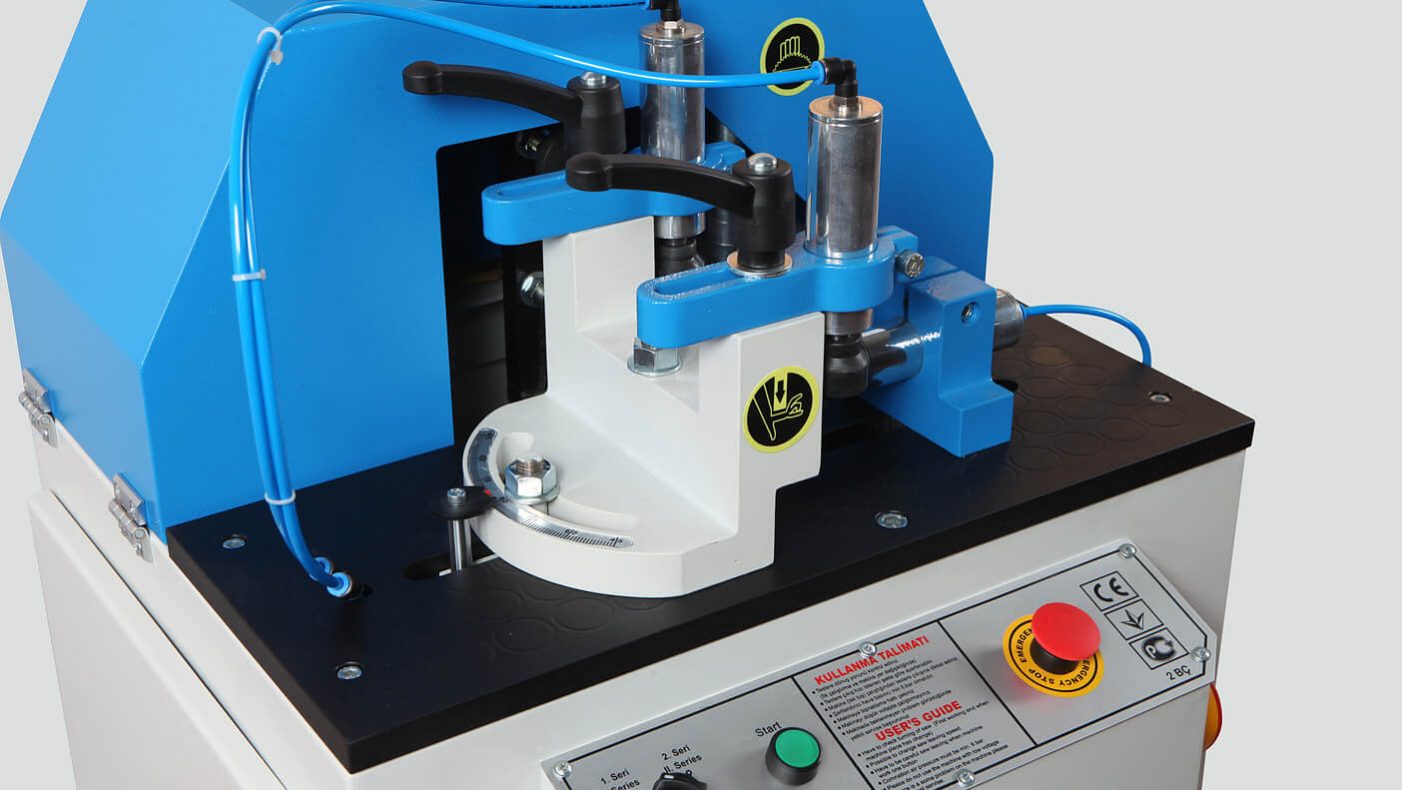

– Vertical and horizontal pneumatic clamping kit.

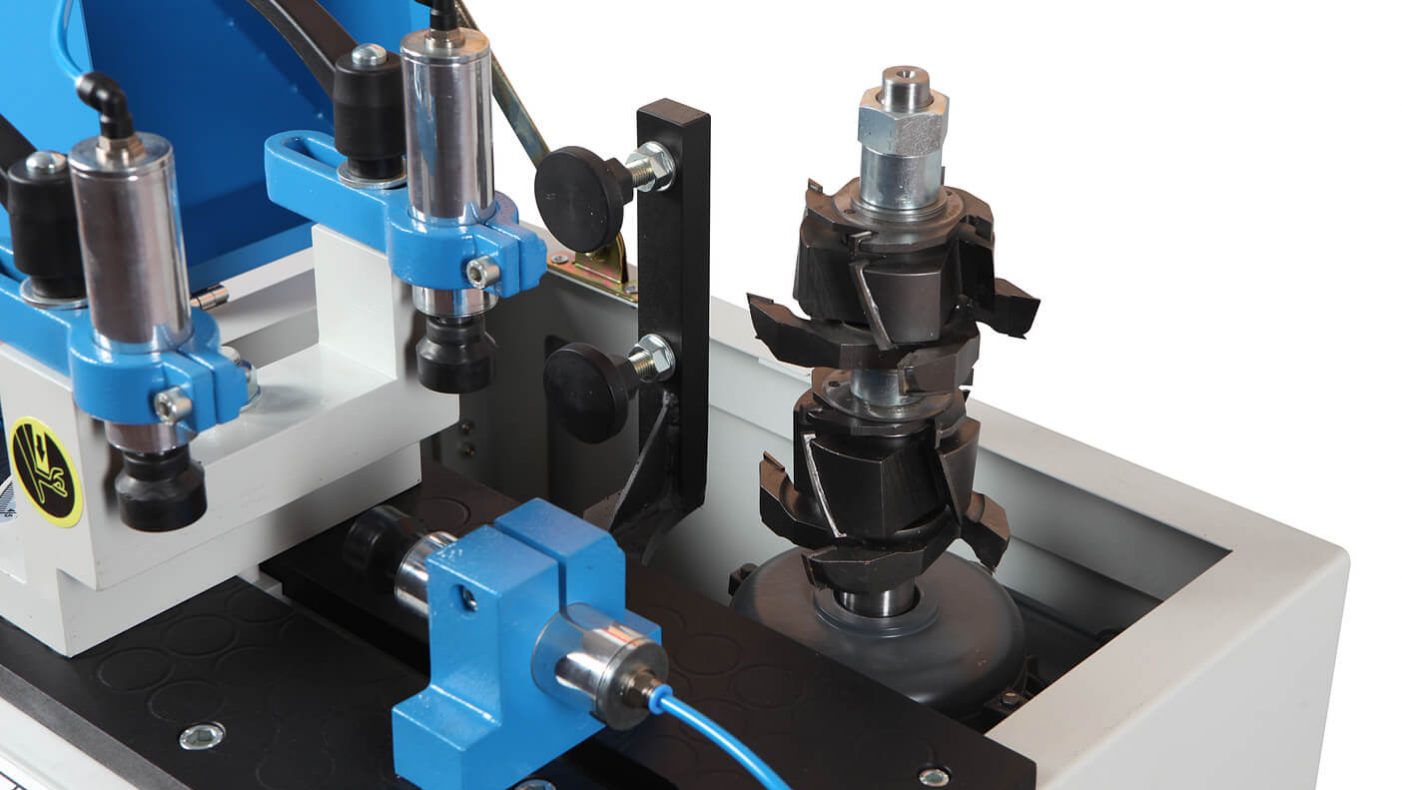

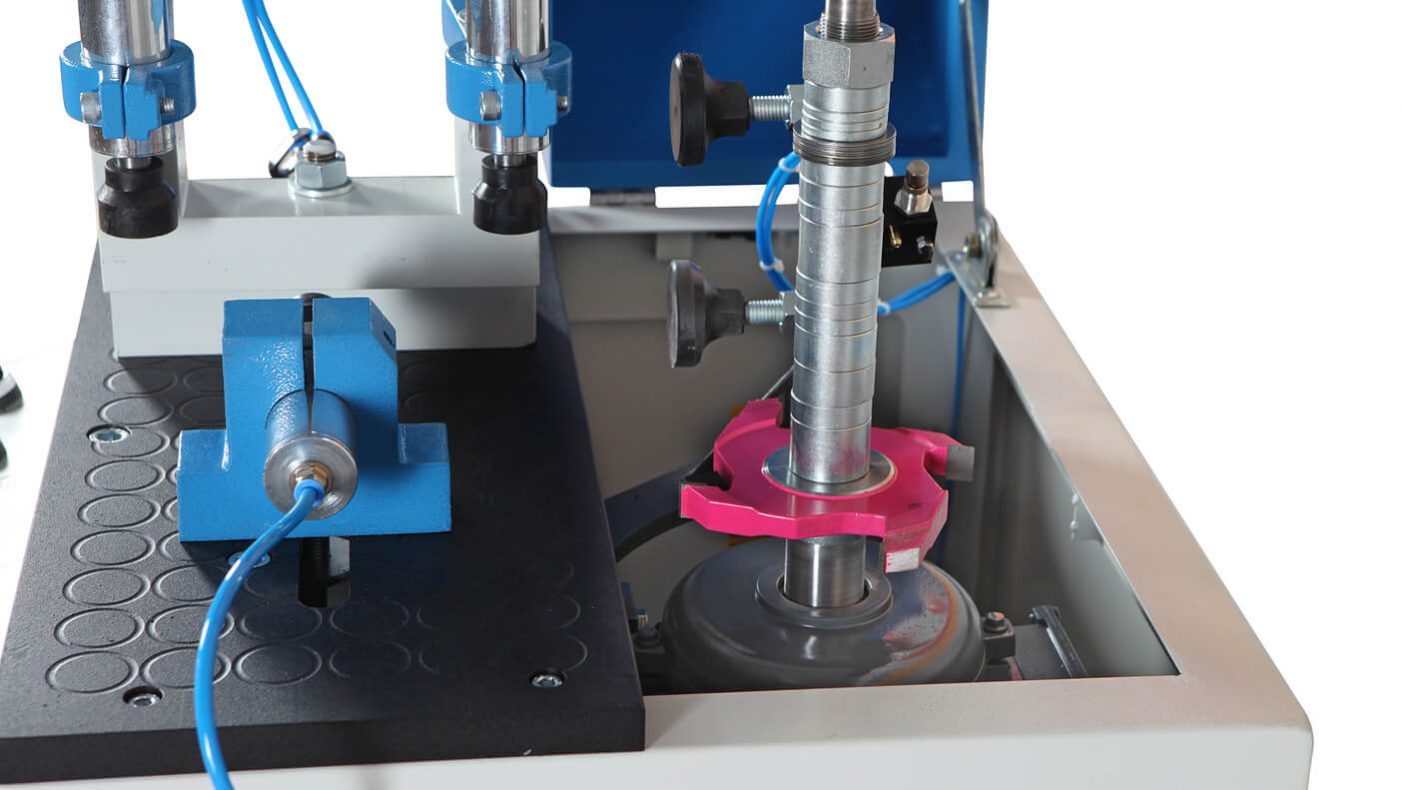

– 2 attachable different blade sets.

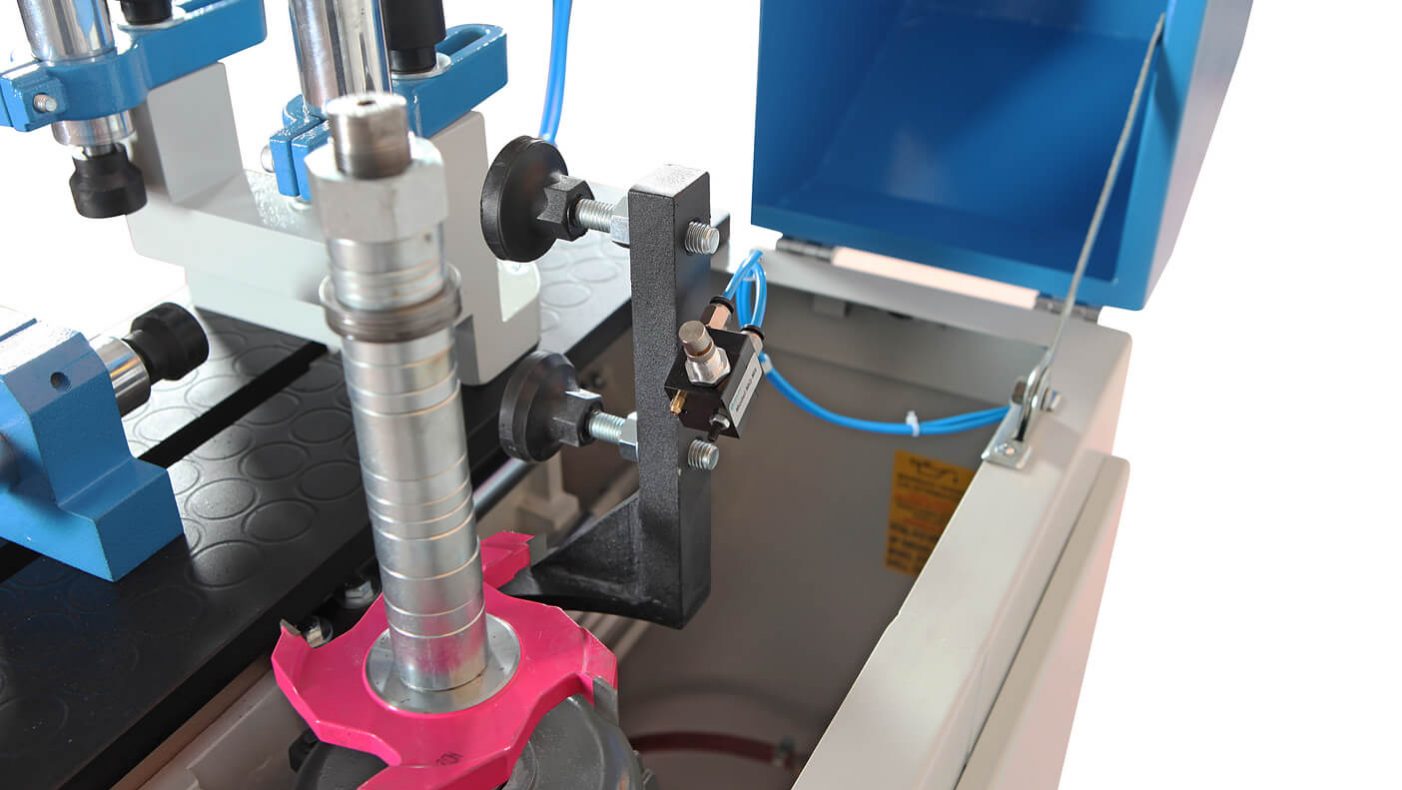

– Easy blade changing system.
– You can notch aluminum profiles without any problem via its 1,5 Kw strong motor.
Option:
– Cooling system for aluminium mullion profile cutting.
| STANDARD VOLTAGE | 380 V |
| FREQUENCY | 50 Hz |
| TOTAL POWER | 1.5 KW |
| AIR PRESSURE | 6 Bar Min. |
| AIR TRANSPORT | 1.40 Lt. Min. |
| MACHINE WIDTH | 585 mm. |
| MACHINE LENGTH | 640 mm. |
| MACHINE HEIGHT | 1020 mm. |
| MACHINE WEIGHT | 115 Kg. |
