TECHNICAL SPECIFICATIONS

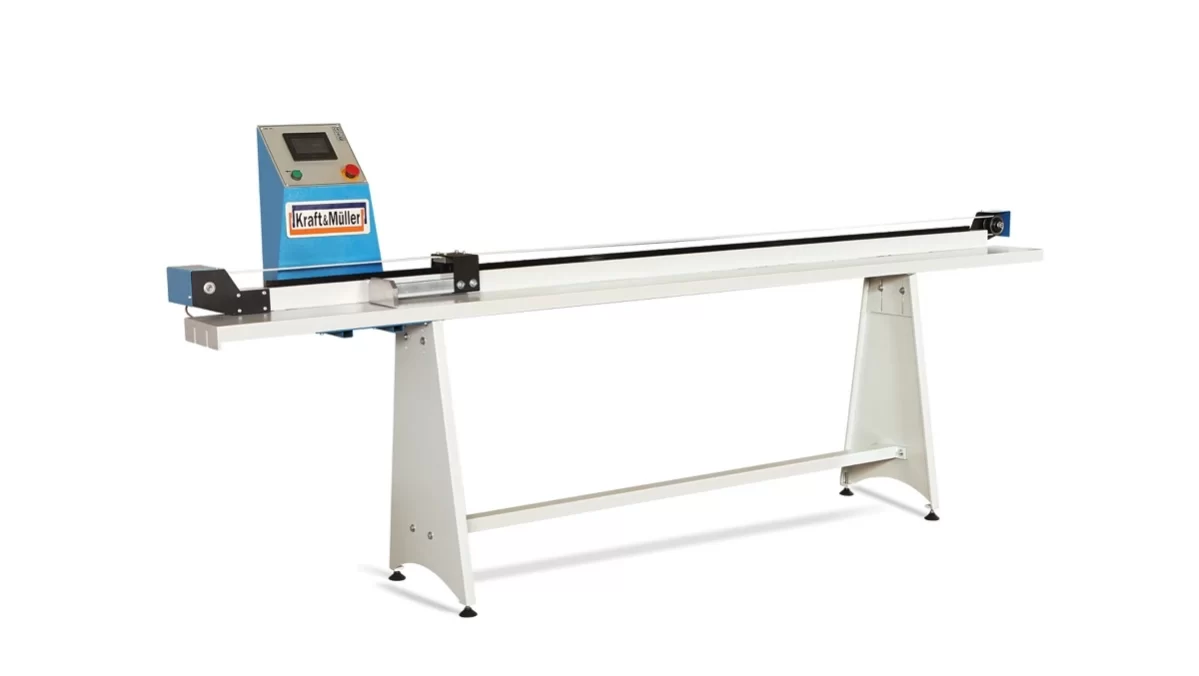

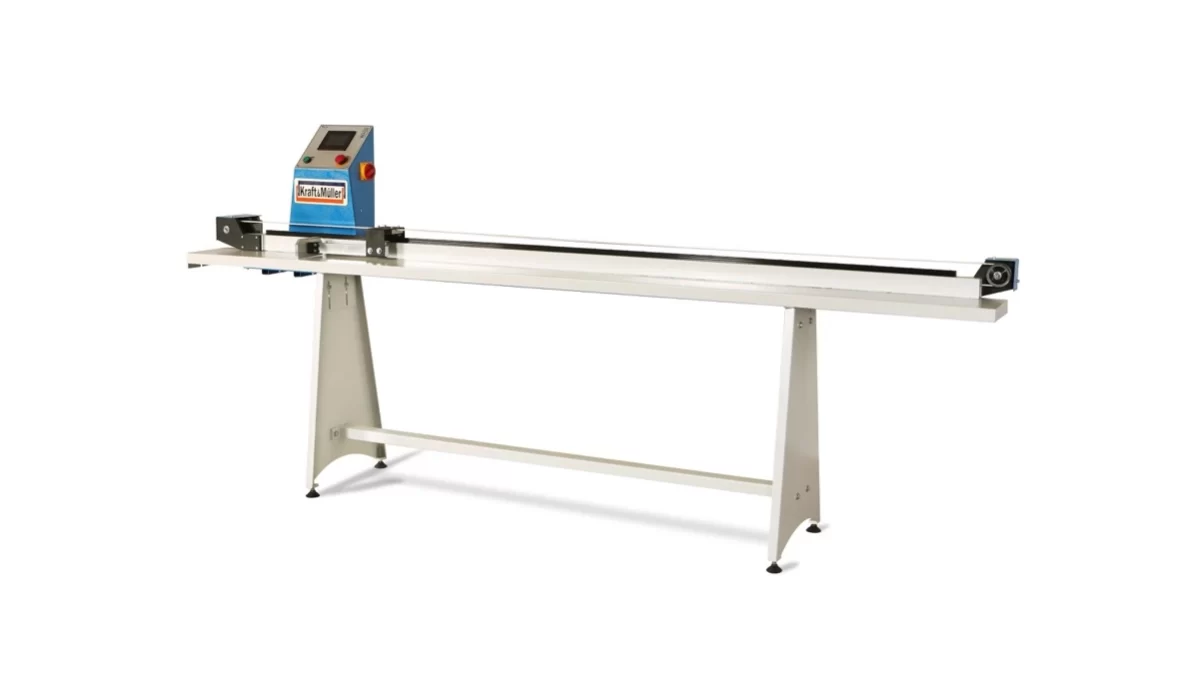

Digital Measuring Table conveyor has been designed to measure the desired length of the profiles to be cut on cutting machines to provide an easier cutting process. The measurement block will move to the requested position by simply entering the length into the touchscreen.
– 0,1mm measurement accuracy
– 3 meters long, 2800mm net cutting size

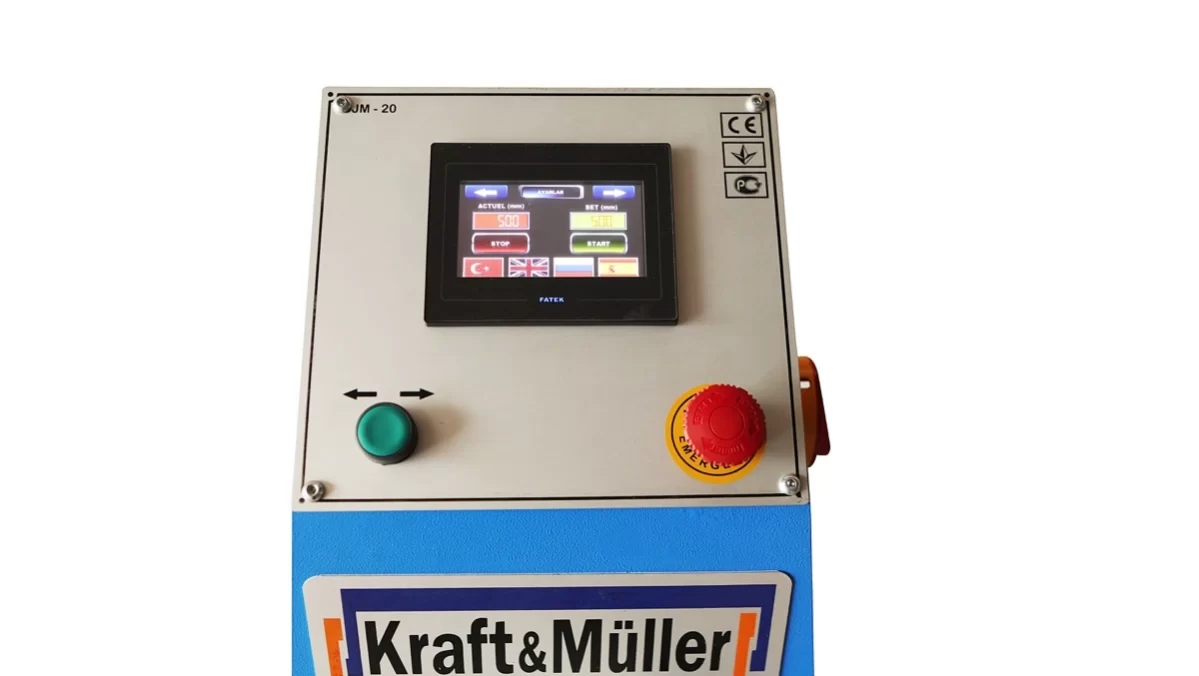

– Touchscreen
– After each cut is done, the measuring block moves back one step so the profile can be easily taken
– Practical design for efficient use
| STANDARD VOLTAGE | 380 V |
| FREQUENCY | 50 Hz |
| TOTAL POWER | 1.5 KW |
| AIR PRESSURE | 6 Bar Min. |
| AIR TRANSPORT | 1.40 Lt. Min. |
| MACHINE WIDTH | 585 mm. |
| MACHINE LENGTH | 640 mm. |
| MACHINE HEIGHT | 1020 mm. |
| MACHINE WEIGHT | 115 Kg. |
