TECHNICAL SPECIFICATIONS

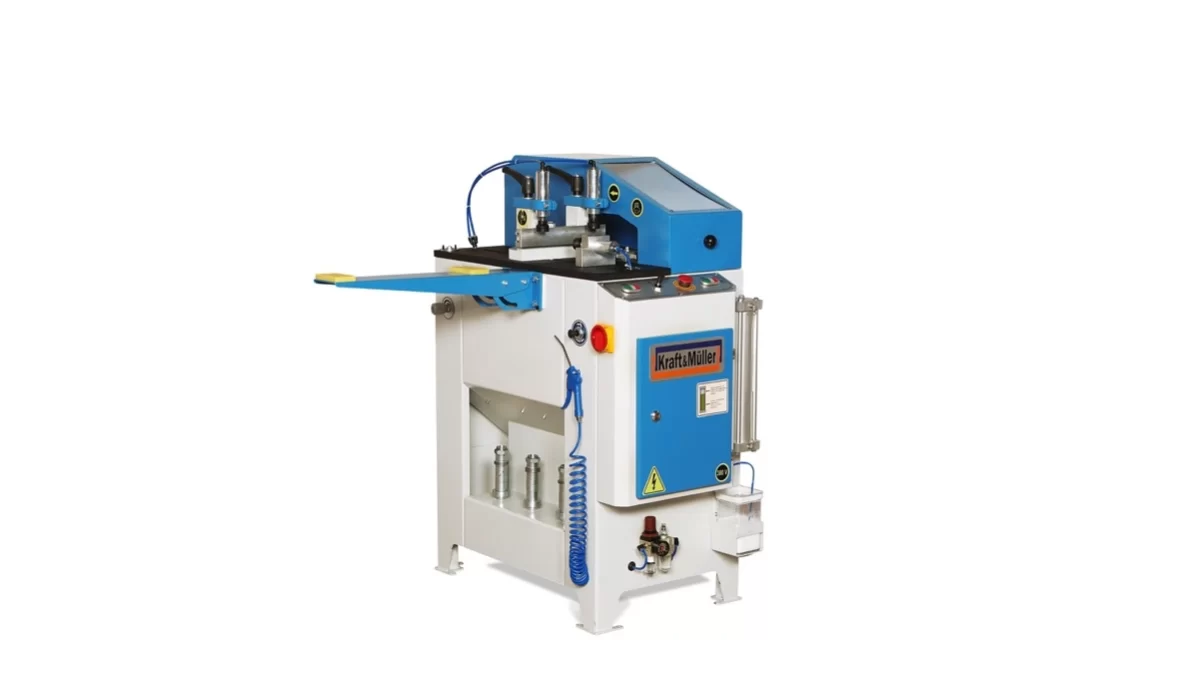

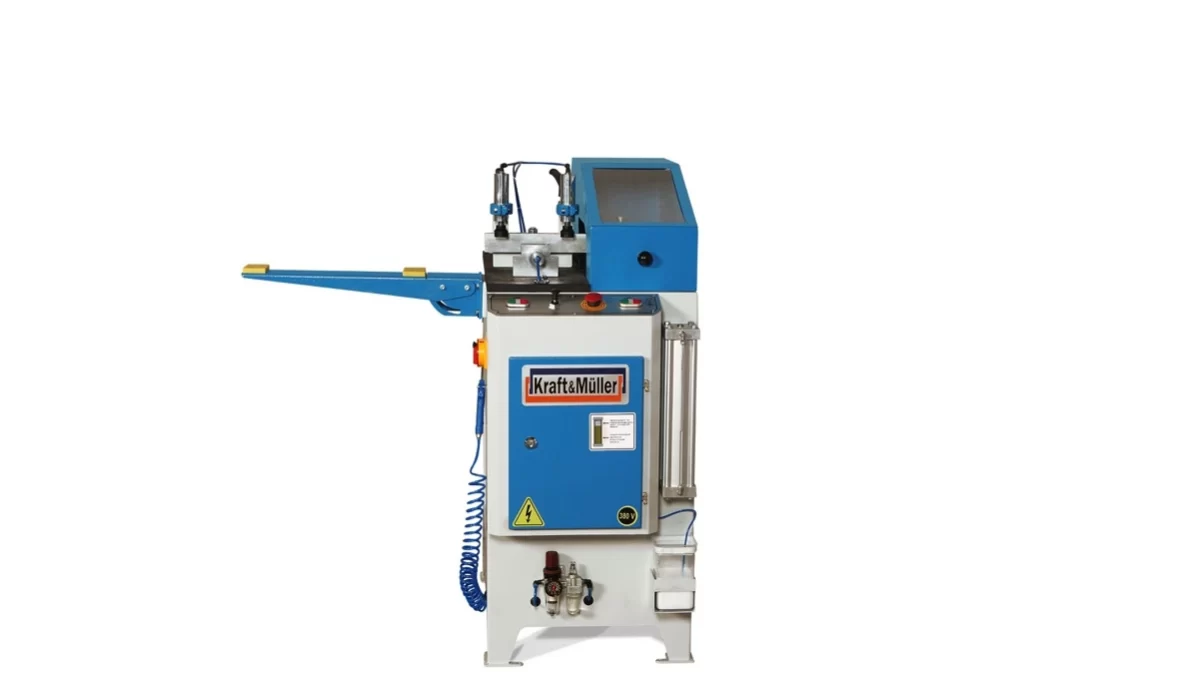

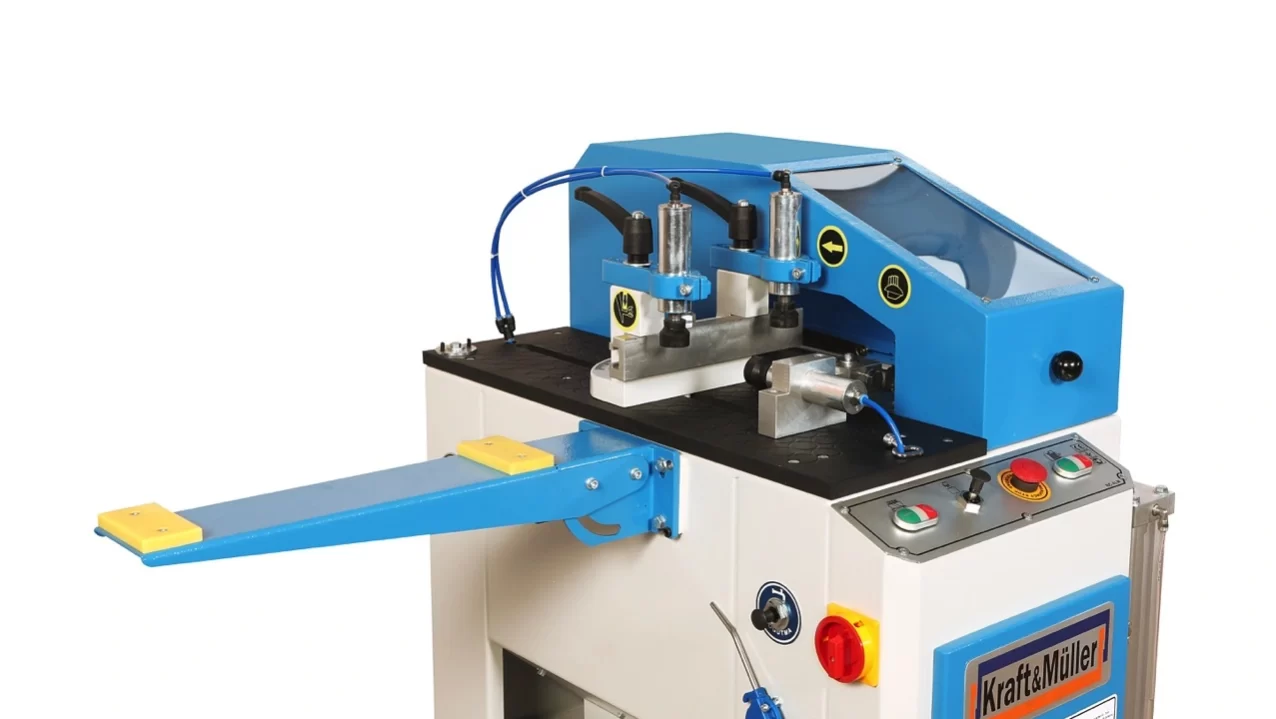

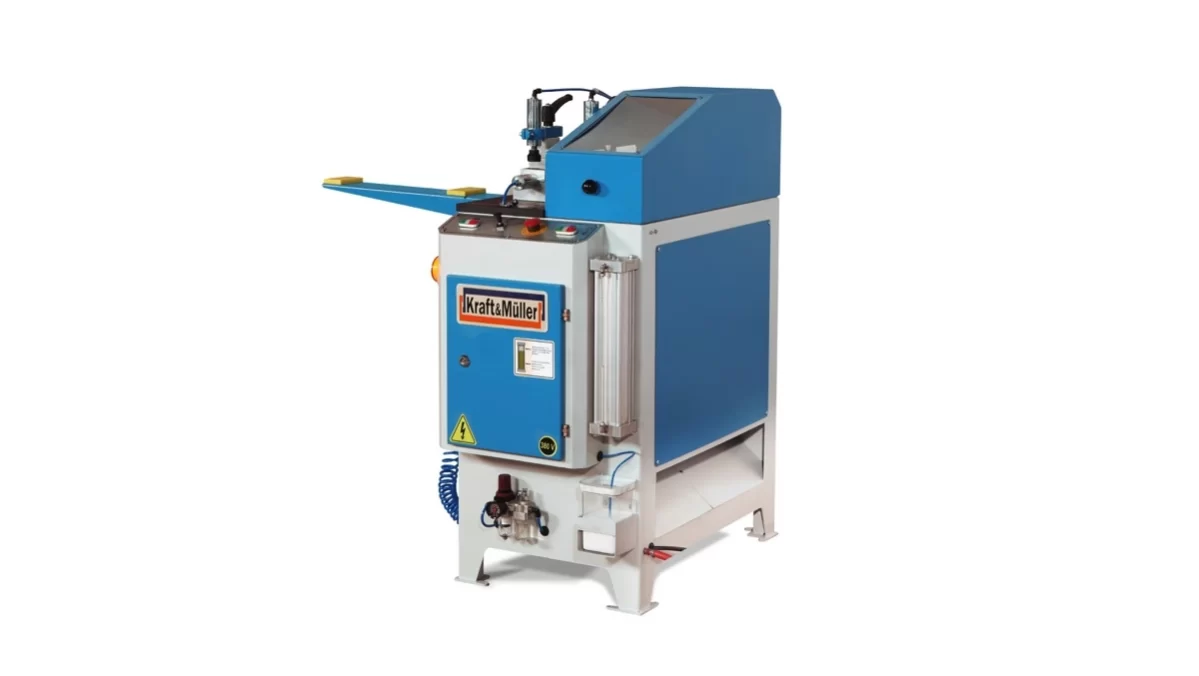

– End Milling Machine has been designed for heavy-duty Aluminium mullion profile processing operation with a rapid blade changing system.

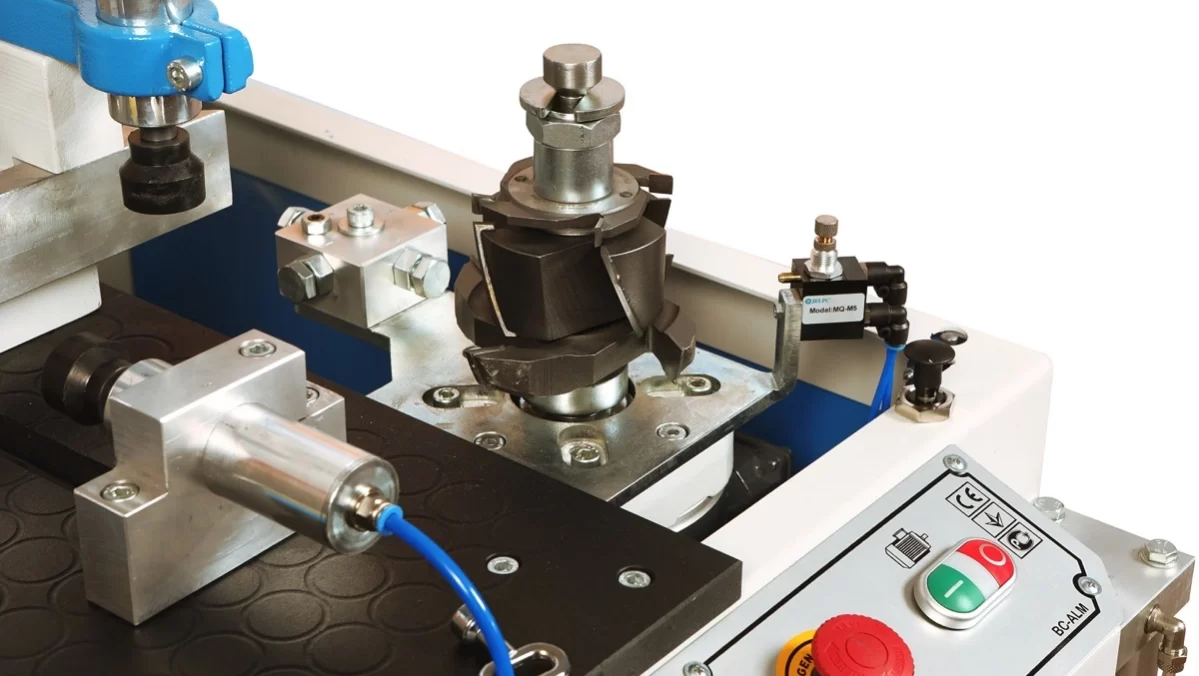

– Fast and easy blade-changing system

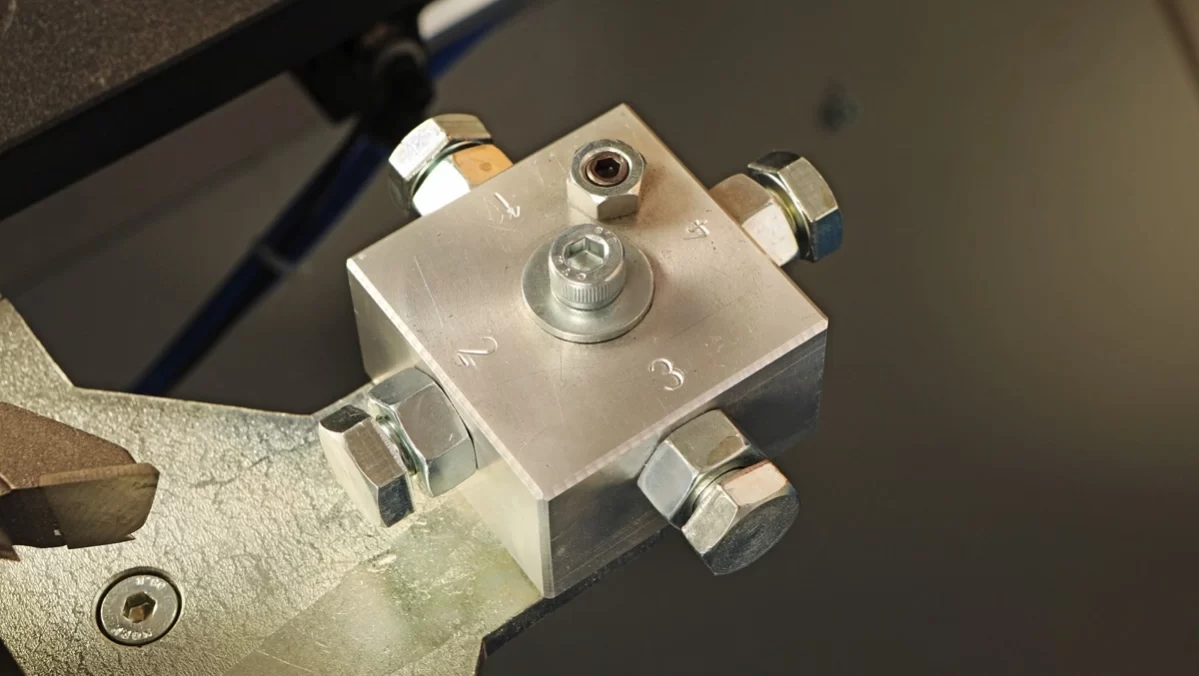

– Rotating support system for quick adjust to four different profiles.

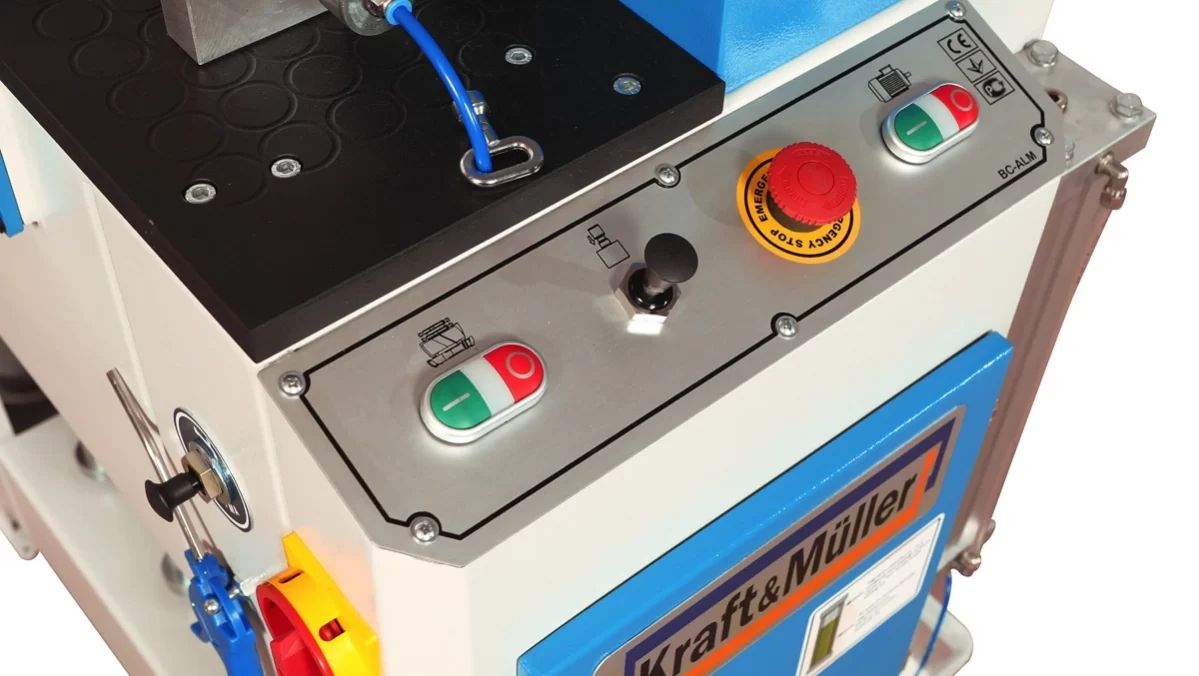

– Possibility to easily adjust the cutting speed with the regulator on the panel

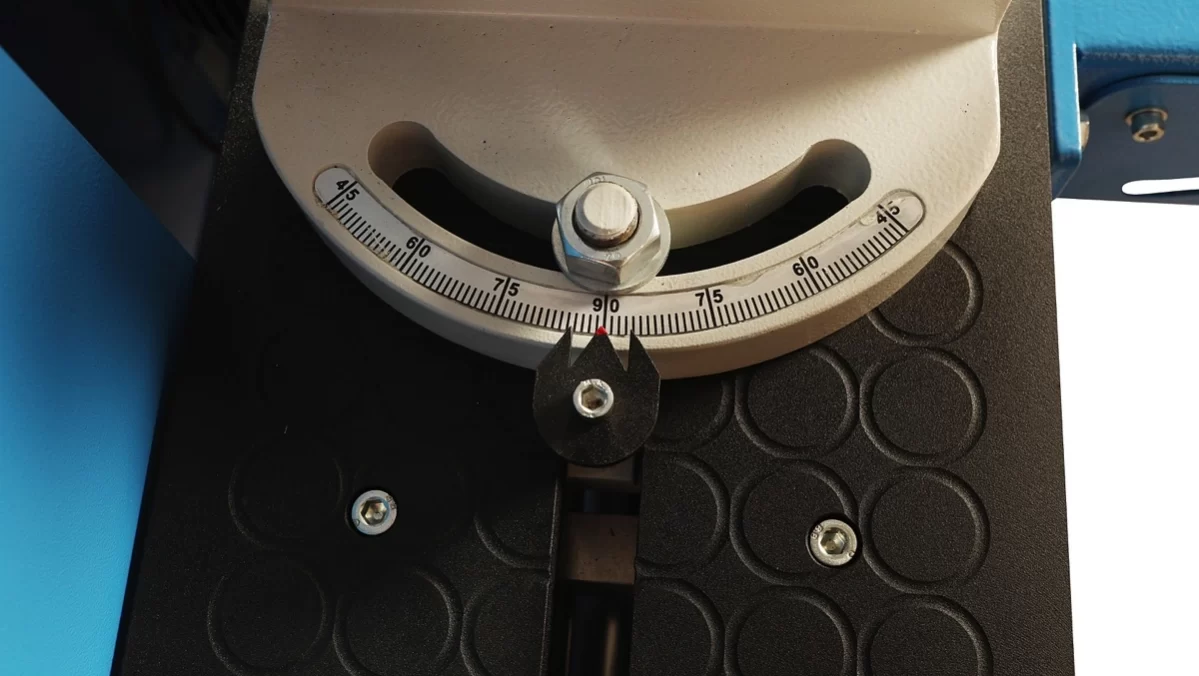

– Milling operation at –45° / +45° and intermediate angles

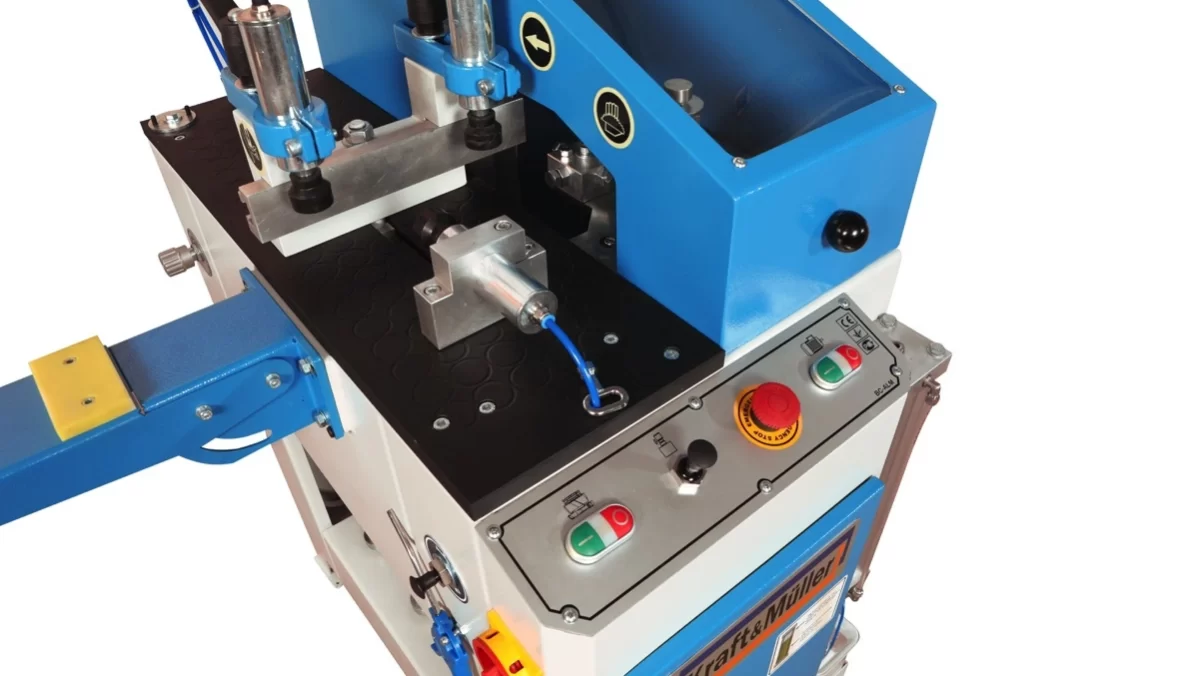

– 2 Vertical 1 horizontal pneumatic clamping system
– Specially designed plate preventing profile sliding
– Additional fixing of profile by a side stop
– Special channel in stop plate is made for the best fixing of profile
– Foldable profile supporting arm

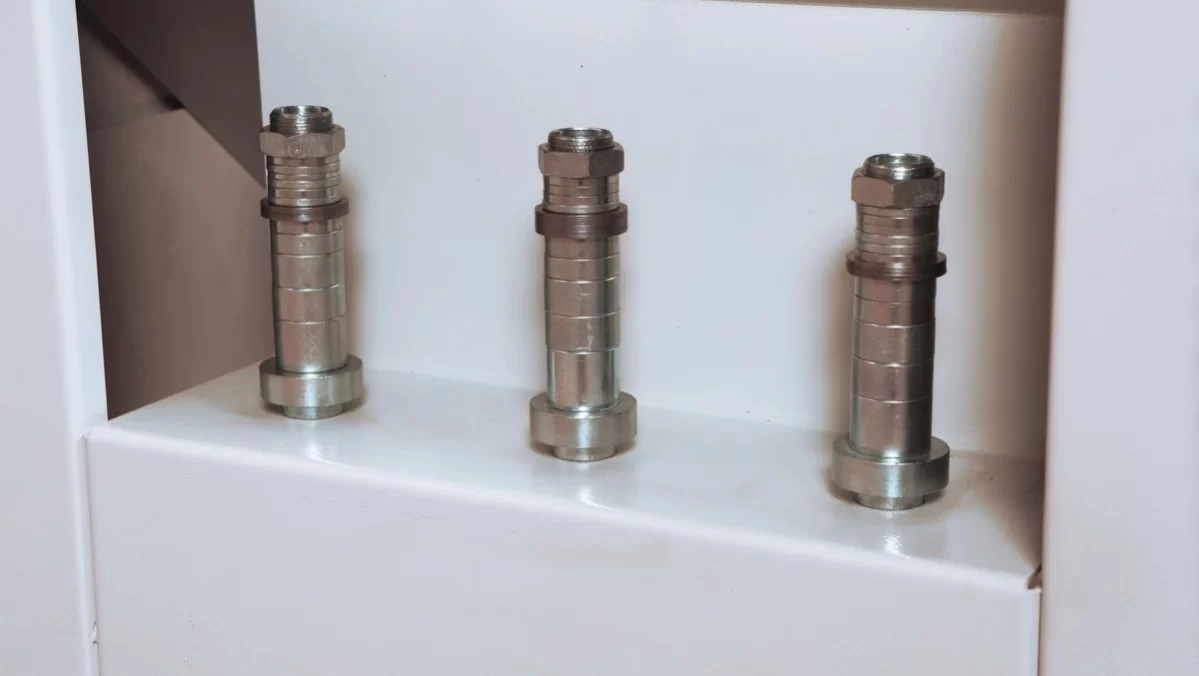

– 3 Storage chambers for extra blades

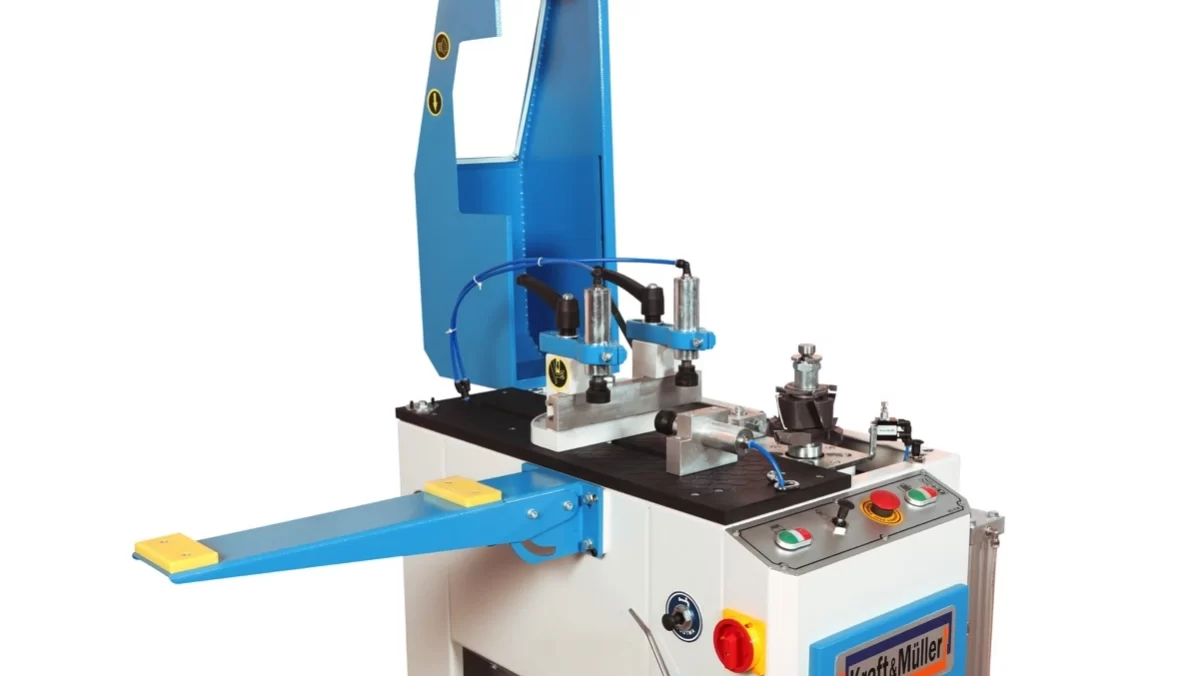

– Top cover safety switch

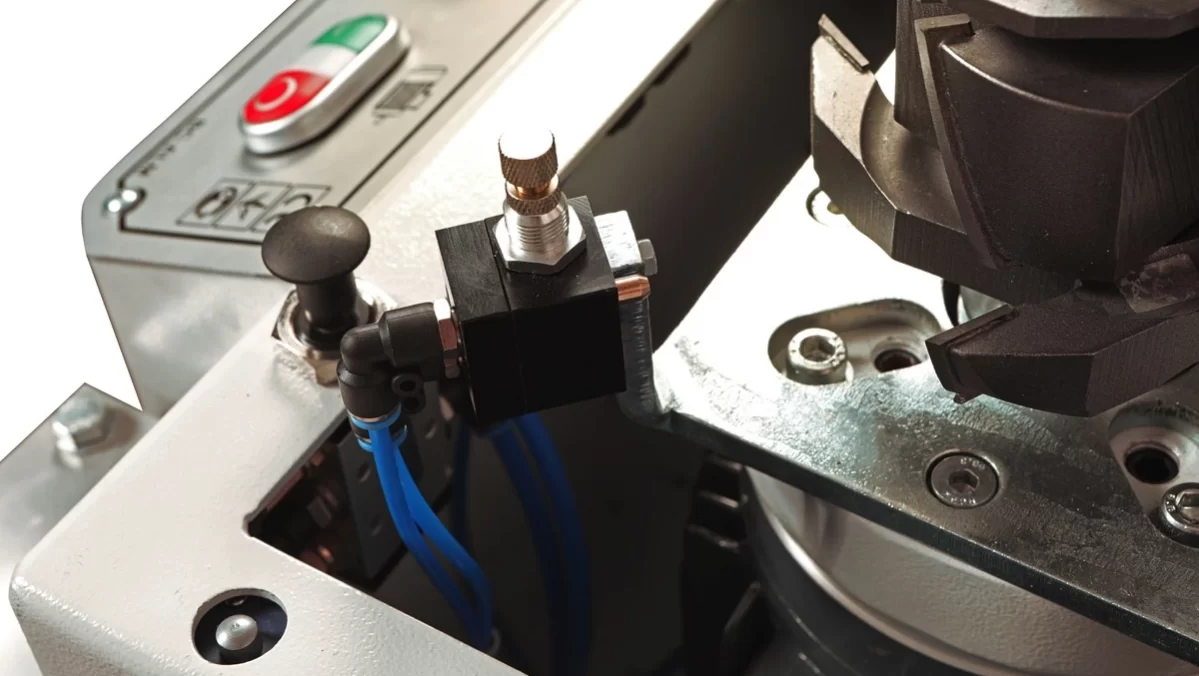

– Hydro Pneumatic and oil cooling systems for aluminium profile cutting
| STANDARD VOLTAGE | 380 V |
| FREQUENCY | 50 Hz |
| TOTAL POWER | 1.5 KW |
| AIR PRESSURE | 6 Bar Min. |
| AIR TRANSPORT | 1.40 Lt. Min. |
| MACHINE WIDTH | 585 mm. |
| MACHINE LENGTH | 640 mm. |
| MACHINE HEIGHT | 1020 mm. |
| MACHINE WEIGHT | 115 Kg. |
