TECHNICAL SPECIFICATIONS
– Designed for fastening reinforcement steel profiles inside uPVC profiles

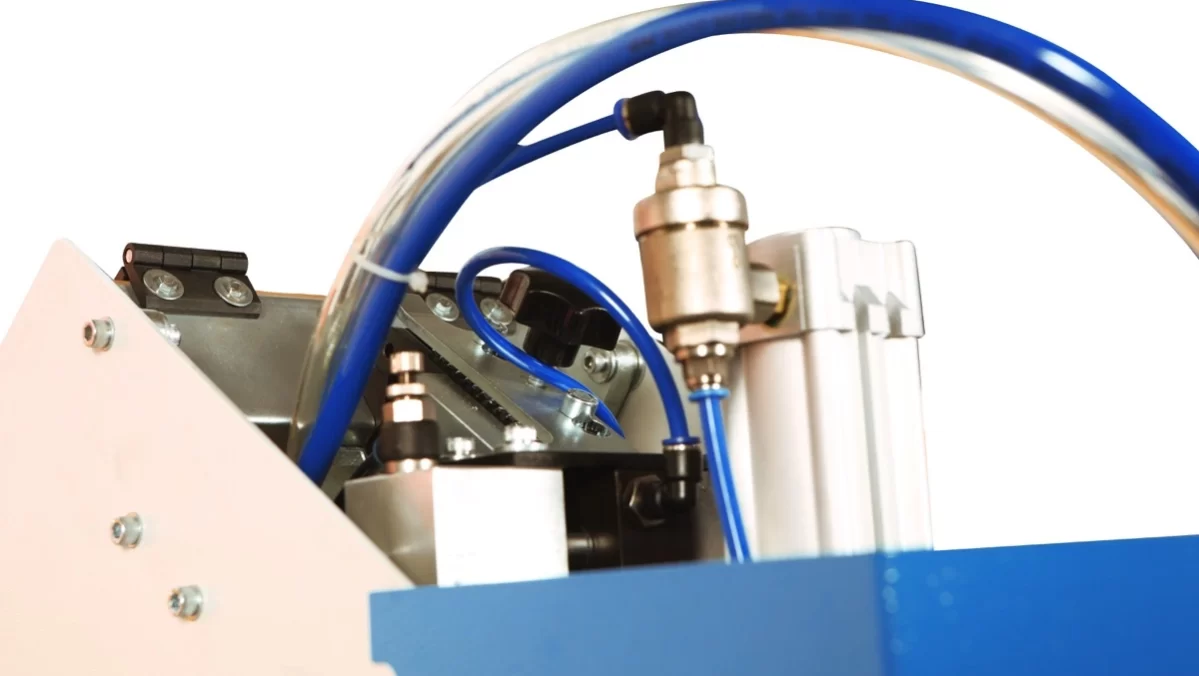

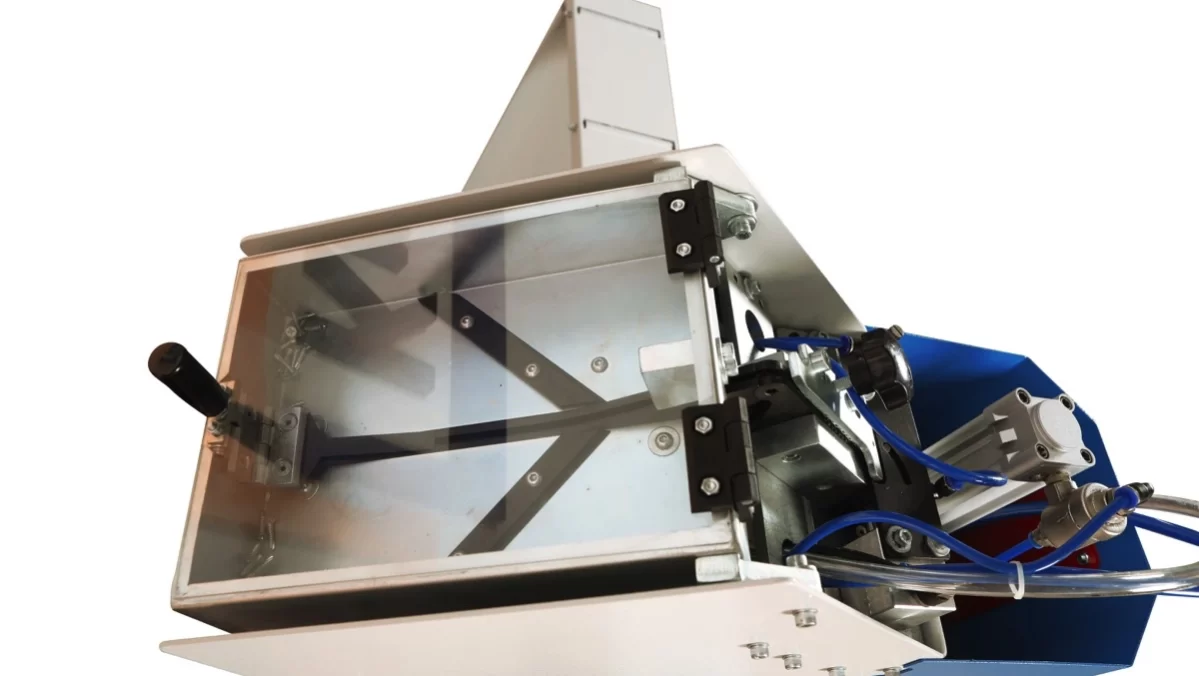

– Automatic pneumatic screw feeding unit
– Automatic screwing through pedal control
– Automatic stop after screwing
– Height adjustment sensor for special screws

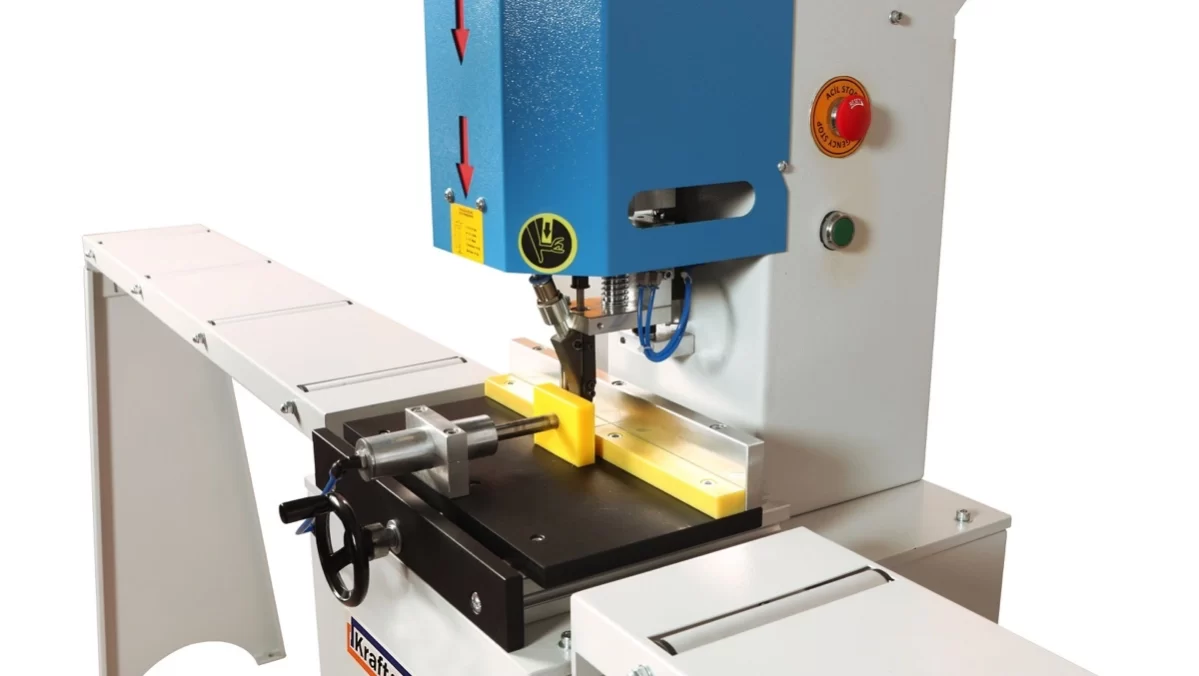

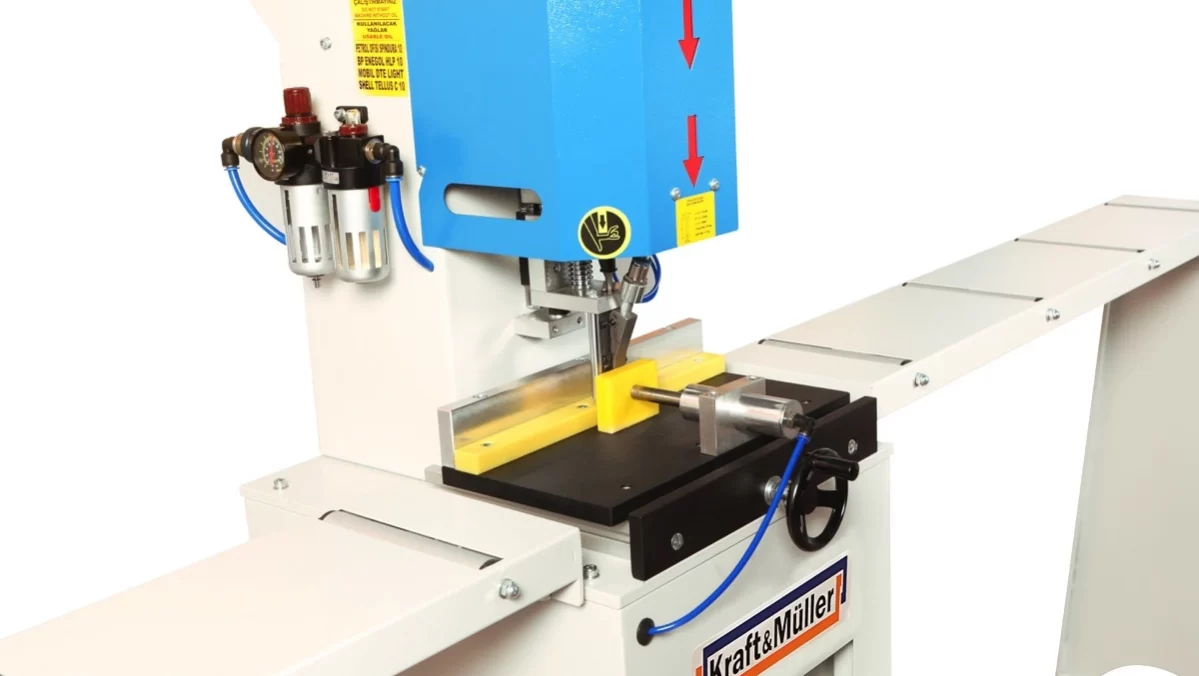

– Automatic clamping of the profile during screwing
– Adjustable profile base distance

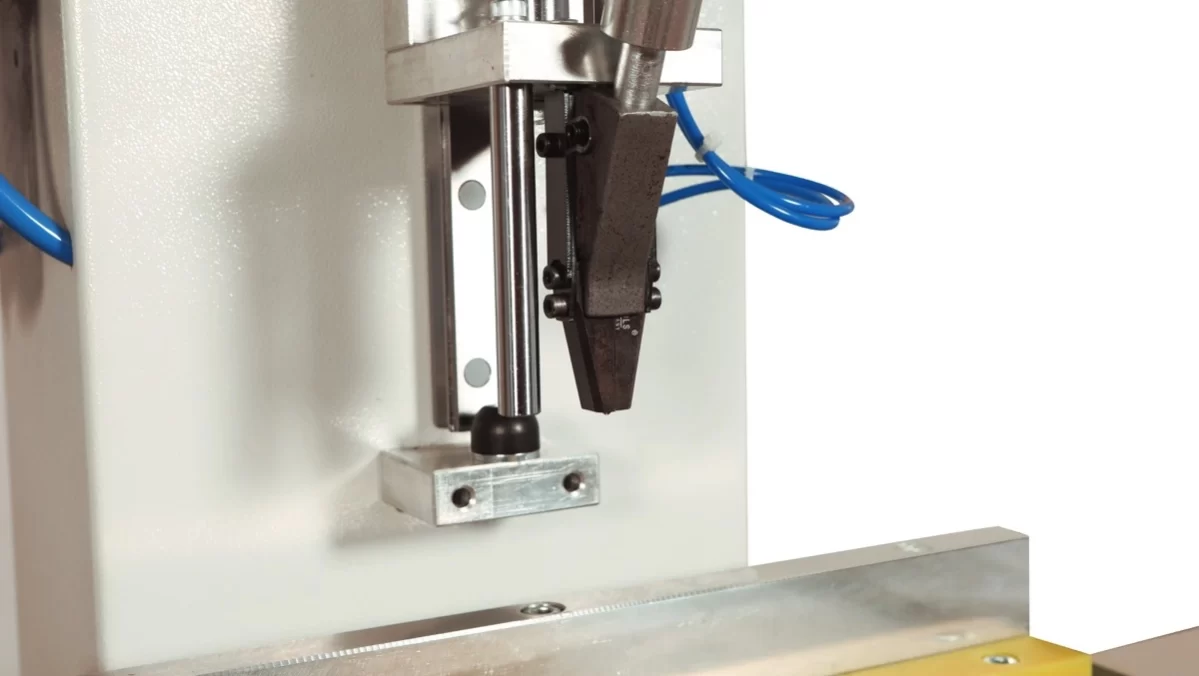

– Durable use of bit and possibility for easy change
– Average screwing speed: 1,7 sec/pcs
– Maximum reinforcement profile thickness: 3 mm
– Profile width: Minimum 40mm, Maximum 130mm
| STANDARD VOLTAGE | 380 V |
| FREQUENCY | 50 Hz |
| TOTAL POWER | 3 KW |
| AIR PRESSURE | 6 Bar Min. |
| AIR TRANSPORT | 2 Lt. Min. |
| MACHINE WIDTH | 800 mm. |
| MACHINE LENGTH | 980 mm. |
| MACHINE HEIGHT | 1450 mm. |
| MACHINE WEIGHT | 260 Kg. |
